Both probes use the same 8 mm tip, M10 case and matched 3300 XL 8 mm electronics, so the target and gap rules are common.
01
Product Information

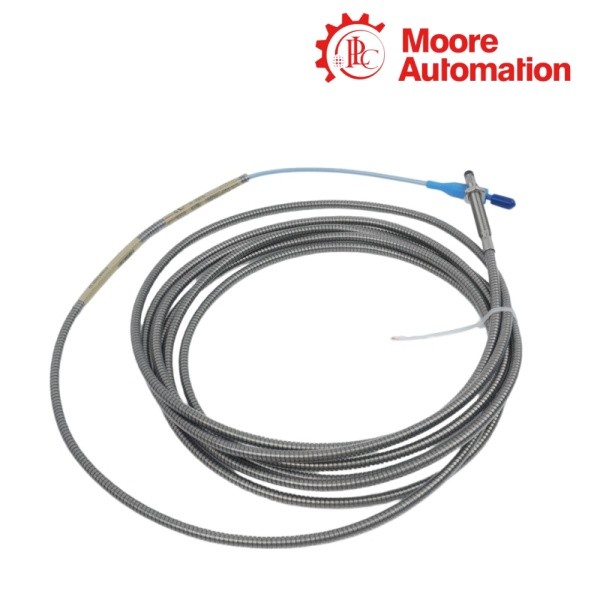

Bently Nevada 330104-01-09-90-01-05 and Bently Nevada 330104-01-09-50-01-05 are armored M10 x 1 versions of the 3300 XL 8 mm proximity probe. Both form the target-facing element of a matched 8 mm transducer system, use a 10 mm unthreaded section and a 90 mm case, and terminate through a protected ClickLoc connection.
The configured difference is lead length: Bently Nevada 330104-01-09-90-01-05 carries a 9.0 m integral cable, while Bently Nevada 330104-01-09-50-01-05 carries a 5.0 m integral cable. That difference changes the cable-routing and matched-system planning even though the probe tip, mounting thread and case geometry remain the same.
For both Bently Nevada 330104-01-09-90-01-05 and Bently Nevada 330104-01-09-50-01-05, the extension-cable choice must preserve the total length accepted by the selected Proximitor Sensor. Armor supports the long lead mechanically, but bend radius, connector cleanliness and target clearance still control whether the system retains its calibrated response.
02
Technical Data
| Technical Item | 330104-01-09-90-01-05 | 330104-01-09-50-01-05 |
|---|---|---|
| Brand | Bently Nevada | |
| Product Name | 3300 XL 8 mm M10 armored proximity probe | |
| Country | United States | |
| Probe execution | 330104 = M10 x 1 thread, with armor | |
| Unthreaded length | 01 = 10 mm | |
| Case length | 09 = 90 mm | |
| Total probe length | 90 = 9.0 m | 50 = 5.0 m |
| Connector and cable | 01 = ClickLoc connector with protector, standard cable | |
| Agency approval | 05 = CSA, ATEX and IECEx approvals | |
| Probe tip diameter | 8.0 mm | |
| System linear range | 2.0 mm (80 mil) | |
| Nominal scale factor | 7.87 V/mm (200 mV/mil) | |
| Recommended gap | 1.27 mm (50 mil) | |
| Probe case material | AISI 304 stainless steel | |
| Probe temperature | −52 to +177 °C | |
03
Operating Characteristics
The two Bently Nevada 330104 probes share sensing performance but place different demands on cable routing and system-length selection.
Different cable path
The 9.0 m lead reaches farther without a separate junction, while the 5.0 m lead leaves more system-length options for a compatible extension cable.
Long-lead behavior
Cable support, separation from interference sources and connector condition become increasingly important as the integral armored route grows longer.
04
System Integration
Bently Nevada 330104-01-09-90-01-05 and Bently Nevada 330104-01-09-50-01-05 must be integrated by total cable length, not by connector fit alone.
Select the Proximitor path
Choose the compatible 3300 XL 8 mm Proximitor Sensor and extension-cable combination that accepts the probe's 9.0 m or 5.0 m lead.
Preserve the M10 geometry
The 10 mm unthreaded section and 90 mm case define the installed tip position and must match the machine-side metric mounting point.
Verify the monitor signal
After assembly, confirm Proximitor supply, gap voltage and dynamic response before treating either long-lead probe as a valid monitor input.
05
Product Questions
01What is the key difference between Bently Nevada 330104-01-09-90-01-05 / 330104-01-09-50-01-05?
Bently Nevada 330104-01-09-90-01-05 / 330104-01-09-50-01-05 share the same M10 case and probe construction; the configured difference is the 9.0 m versus 5.0 m integral lead.
02Why does cable length matter for Bently Nevada 330104-01-09-90-01-05 / 330104-01-09-50-01-05?
The integral lead is part of the calibrated electrical path for Bently Nevada 330104-01-09-90-01-05 / 330104-01-09-50-01-05, so extension-cable and Proximitor selection must preserve an accepted total system length.
03Can Bently Nevada 330104-01-09-90-01-05 / 330104-01-09-50-01-05 use the same mounting hole?
Yes, Bently Nevada 330104-01-09-90-01-05 / 330104-01-09-50-01-05 share the M10 x 1 case, 10 mm unthreaded length and 90 mm case, provided the machine-side reach and clearance are correct.
04How should the long armor be supported on Bently Nevada 330104-01-09-90-01-05 / 330104-01-09-50-01-05?
Support Bently Nevada 330104-01-09-90-01-05 / 330104-01-09-50-01-05 at intervals that prevent cable weight and vibration from loading the ferrule, while maintaining a smooth bend radius.
05What if only the connector code matches Bently Nevada 330104-01-09-90-01-05 / 330104-01-09-50-01-05?
Connector fit alone is insufficient for Bently Nevada 330104-01-09-90-01-05 / 330104-01-09-50-01-05; confirm probe family, total cable length, Proximitor type and approval execution.
06How is commissioning compared for Bently Nevada 330104-01-09-90-01-05 / 330104-01-09-50-01-05?
Commission Bently Nevada 330104-01-09-90-01-05 / 330104-01-09-50-01-05 with the same target and gap checks, but document the actual cable route and matched system length separately for each probe.
