1. Pair cable and reach
Keep the 1.0 m cable with the 14.9 in penetration record and the 0.5 m cable with the 10.4 in record before assembling either housing.
24701stainless-steel proximity probe housing assemblies
Bently Nevada · Machinery monitoring hardware

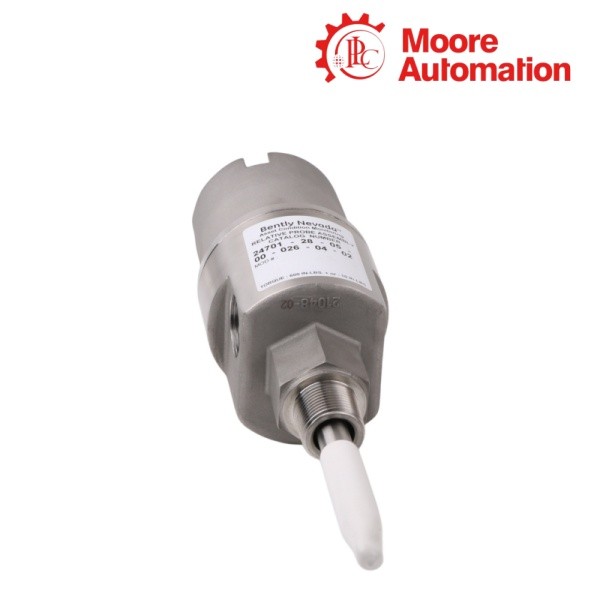

Bently Nevada 24701-28-10-XX-149-03-XX MOD:323933-00-02 / 24701-28-05-XX-104-03-XX MOD:323933-00-02 | Probe housing assemblies
Two 24701 housings with different probe-lead and penetration records but the same stainless-steel enclosure family.
Lead length1.0 m / 0.5 m
Probe3300 XL 8 mm
Fitting code03
Product facts
Product Information
Bently Nevada 24701-28-10-XX-149-03-XX MOD:323933-00-02 / 24701-28-05-XX-104-03-XX MOD:323933-00-02 combines two 24701 stainless-steel proximity probe housing configurations. Option A code 28 selects a 3300 XL 8 mm probe with approval option in both records, and the housing holds the reverse-mounted sensing tip at the specified penetration.
The cable and penetration selections differ inside Bently Nevada 24701-28-10-XX-149-03-XX MOD:323933-00-02 / 24701-28-05-XX-104-03-XX MOD:323933-00-02. Option B code 10 provides a 1.0 m cable and Option D code 149 specifies 14.9 in; code 05 provides a 0.5 m cable and code 104 specifies 10.4 in. Both use Option E code 03 with one plug, one reducer and one cable-seal grip.
A 303 stainless-steel body and 304 stainless-steel probe sleeve form the mechanical envelope of Bently Nevada 24701-28-10-XX-149-03-XX MOD:323933-00-02 / 24701-28-05-XX-104-03-XX MOD:323933-00-02. The selected lead length must pass through that envelope without a bend that conflicts with the sleeve or cable-seal route.
Verified data
Technical Data
| Technical item | 24701-28-10-XX-149-03-XX MOD:323933-00-02 | 24701-28-05-XX-104-03-XX MOD:323933-00-02 |
|---|---|---|
| Brand | Bently Nevada | |
| Product type | 24701 proximity probe housing assembly | |
| Brand country | United States | |
| Probe selection (Option A) | 28: 3300 XL 8 mm probe with approval option | |
| Probe cable length (Option B) | 10: 1.0 m (39 in) | 05: 0.5 m (20 in) |
| Probe penetration (Option D) | 149: 14.9 in Option D dimension | 104: 10.4 in Option D dimension |
| Fittings (Option E) | 03: one 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer, and one cable-seal grip with three grommet ranges | |
| Housing body | 303 stainless steel | |
| Probe sleeve | 304 stainless steel | |
| Typical mass | 1.8 kg without fittings | |
| Probe operating and storage temperature | -51 to +177 °C | |
| Long-sleeve boundary | Add sleeve support when C plus D exceeds 300 mm (12 in) | |
Three-step installation
Installation & Integration: Probe Cable Routing
The 1.0 m and 0.5 m cable versions must be routed as separate installations because their available lead length and penetration dimensions are different.
2. Build the cable path
Insert the reverse-mount probe through the selected sleeve, install the O-rings and thread seal, and route the lead through the Option E cable-seal and reducer set without a tight bend.
3. Support, gap and close
Support any sleeve for which C plus D exceeds 300 mm, mount the body at the machine case, electrically set the probe gap and close the dome after the cable route is verified.
Fluid-film bearing machines
Product Applications: Externally Mounted Shaft Measurement
These 24701 housings place a 3300 XL 8 mm probe outside the machine case while the probe performs the required non-contact shaft measurement.
01
Shaft vibration projects
On fluid-film bearing machines, the housing protects and positions a probe used to measure dynamic shaft vibration relative to the bearing or machine case.
02
Axial or radial position
The same externally mounted arrangement can hold the probe for static shaft-position measurements when the target and mounting geometry provide the required linear range.
03
Keyphasor and speed duty
With the appropriate rotating reference target and matched 3300 XL electronics, the housed 8 mm probe can supply Keyphasor phase-reference or speed information.
Practical selection and use
Product Questions
How should lead length be checked for 24701-28-10-XX-149-03-XX MOD:323933-00-02 / 24701-28-05-XX-104-03-XX MOD:323933-00-02?
For 24701-28-10-XX-149-03-XX MOD:323933-00-02 / 24701-28-05-XX-104-03-XX MOD:323933-00-02, keep the 1.0 m lead with the 149 record and the 0.5 m lead with the 104 record. Plan the conduit route around the actual available slack.
Why can the two housings in 24701-28-10-XX-149-03-XX MOD:323933-00-02 / 24701-28-05-XX-104-03-XX MOD:323933-00-02 not share one penetration assumption?
The 149 and 104 fields in 24701-28-10-XX-149-03-XX MOD:323933-00-02 / 24701-28-05-XX-104-03-XX MOD:323933-00-02 specify 14.9 in and 10.4 in Option D penetration dimensions. Each reach must be checked against its own machine case and target location.
What conduit hardware is common to 24701-28-10-XX-149-03-XX MOD:323933-00-02 / 24701-28-05-XX-104-03-XX MOD:323933-00-02?
Both entries in 24701-28-10-XX-149-03-XX MOD:323933-00-02 / 24701-28-05-XX-104-03-XX MOD:323933-00-02 use fitting code 03, which supplies the plug, cable-seal grip and 3/4-to-1/2 reducer.
Where should support be added for 24701-28-10-XX-149-03-XX MOD:323933-00-02 / 24701-28-05-XX-104-03-XX MOD:323933-00-02?
Add external support to the sleeve of 24701-28-10-XX-149-03-XX MOD:323933-00-02 / 24701-28-05-XX-104-03-XX MOD:323933-00-02 when the installed stainless-steel reach exceeds 304 mm. Support the sleeve without loading the probe cable.
What should be inspected before closing 24701-28-10-XX-149-03-XX MOD:323933-00-02 / 24701-28-05-XX-104-03-XX MOD:323933-00-02?
Before closing 24701-28-10-XX-149-03-XX MOD:323933-00-02 / 24701-28-05-XX-104-03-XX MOD:323933-00-02, inspect the O-rings, thread seal, conduit fittings, lead bend and probe retention as separate parts of the assembly.
How does the housing material support outdoor routing for 24701-28-10-XX-149-03-XX MOD:323933-00-02 / 24701-28-05-XX-104-03-XX MOD:323933-00-02?
The 303 stainless-steel body and 304 stainless-steel sleeve of 24701-28-10-XX-149-03-XX MOD:323933-00-02 / 24701-28-05-XX-104-03-XX MOD:323933-00-02 form the rigid mechanical enclosure around the probe lead and target-facing reach.
