Differential conductors
Four 22 AWG conductors support the accelerometer excitation and differential signal path.
200151Bently Nevada

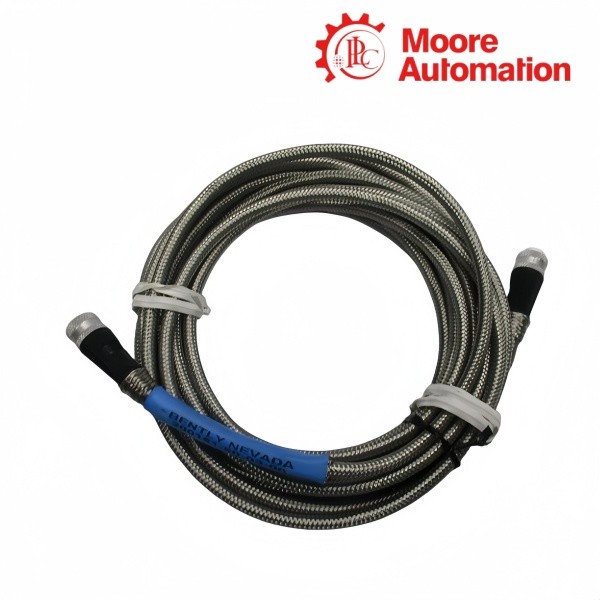

Bently Nevada 200151-XX-XX-XX MOD: 323357-15-03-00 Modified Accelerometer Interface Cable
Connectors on both endsFour-conductor shielded cableModification 323357-15-03-00
01
Product Description
The Bently Nevada 200151-XX-XX-XX MOD: 323357-15-03-00 is a modified accelerometer interface cable in the 20015x sensor family. The 200151 base construction places accelerometer connectors on both ends so the differential signal, excitation conductors and shield continue between the sensor and compatible monitoring hardware.
Cable construction for 200151-XX-XX-XX MOD: 323357-15-03-00 uses four 22 AWG conductors, a braided shield with drain wire and a PVC outer jacket. The placeholder order fields and modification number must remain together because the controlled 323357-15-03-00 record defines the delivered length, armor and coupling-nut execution beyond the public standard ordering options.
02
Technical Specifications
| Technical Item | 200151-XX-XX-XX MOD: 323357-15-03-00 |
|---|---|
| Brand | Bently Nevada |
| Product Type | Modified accelerometer interface cable |
| Product Origin | USA |
| Cable Family | 200151 accelerometer interface standard cable |
| Connector Arrangement | Accelerometer connectors on both ends |
| Modification Identifier | 323357-15-03-00 |
| Conductors | 4-conductor, 22 AWG |
| Shield | Braided shield with drain wire; 85% minimum coverage |
| Outer Jacket | PVC |
| Coupling-nut Material | Nickel-plated construction |
| Connector Seal | IP67 when mated to compatible transducer and hardware |
| Operating Temperature | −20…+100 °C (−4…+212 °F) |
| Cold-routing Limit | Below −20 °C only where the cable will not flex or bend |
| Minimum Bend Radius | 63.5 mm (2.5 in) |
| Published Standard Maximum Length | 25 m (82 ft) |
| Final Assembly Definition | Length, armor and coupling-nut execution follow controlled MOD 323357-15-03-00 |
03
Key Features — Shielded Accelerometer Cable Path
200151-XX-XX-XX MOD: 323357-15-03-00 carries the sensor circuit through a mechanically defined, shielded multi-conductor assembly.
Braided shield
The shield and drain wire provide a continuous noise-control path around the signal conductors.
Molded interfaces
Connectors on both ends provide the standard 200151 sensor-to-hardware arrangement.
04
Installation Highlights — Modified Cable Handling
Routing preserves connector sealing, bend radius and the exact modified assembly identity before either end is attached.
Bend control
Maintain at least the 63.5 mm minimum radius, especially at connector transitions.
Temperature-aware routing
Do not flex the PVC-jacketed cable below −20 °C.
MOD label retention
Keep 323357-15-03-00 with the cable record so a standard 200151 suffix is not substituted.
05
Frequently Asked Questions
Why are the XX fields retained in 200151-XX-XX-XX MOD: 323357-15-03-00?
The controlled modification defines the delivered assembly, so replacing the placeholders with standard public options would invent an unsupported catalog number.
What does 200151-XX-XX-XX MOD: 323357-15-03-00 connect?
The 200151 base family is an accelerometer interface cable with compatible sensor connectors on both ends.
Why can 200151-XX-XX-XX MOD: 323357-15-03-00 become noisy after routing?
Check shield continuity, connector seating, separation from power wiring and mechanical damage to the braided cable path.
What bend limit applies to 200151-XX-XX-XX MOD: 323357-15-03-00?
Maintain a minimum 63.5 mm radius.
Can 200151-XX-XX-XX MOD: 323357-15-03-00 be flexed in very cold service?
Below −20 °C, the cable may only be used where the installation prevents flexing or bending.
How is moisture controlled at 200151-XX-XX-XX MOD: 323357-15-03-00 connectors?
Fully mated compatible interfaces provide the published IP67 seal; loose or contaminated connections defeat it.
