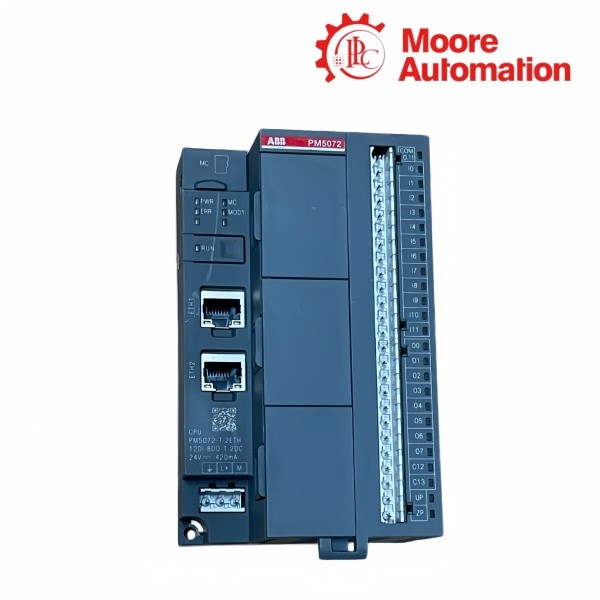

ABB PM5072-T-2ETH 1SAP124500R0173 AC500-eCo V3 Pro CPU
12 + 8 + 2onboard digital I/O
2 × Ethernetnetwork interfaces
24 V DCcontroller supply
01
Product Profile
ABB PM5072-T-2ETH 1SAP124500R0173 is a Pro CPU in the AC500-eCo V3 platform, combining the application processor, onboard digital I/O and two Ethernet interfaces in one controller. The CPU executes the project while its local terminals provide a direct path between field states, transistor outputs and the control logic.
For signal allocation, ABB PM5072-T-2ETH 1SAP124500R0173 supplies twelve digital inputs, eight transistor outputs and two configurable transistor I/O points. Three option-board positions extend the controller, so every board position, terminal direction and field-power group must match the project rather than being inferred from the PM5072 family name.
At the cabinet boundary, ABB PM5072-T-2ETH 1SAP124500R0173 uses a 24 V DC supply and the standard PM5072 environmental execution. The installed article number, hardware revision, option boards and network assignments should remain together because those details define the actual controller that commissioning personnel will see.
02
Performance Specifications
BrandABB
ModelPM5072-T-2ETH 1SAP124500R0173
Product nameAC500-eCo V3 Pro CPU
CountrySwitzerland
PlatformAC500-eCo V3
Downloadable application9 MB total maximum
User program and data1 MB, dynamically allocated
Digital inputs12
Transistor outputs8
Configurable transistor I/O2
Supply voltage24 V DC
Ethernet interfaces2
Option-board positions3
Dimensions (W × H × D)82 × 149.52 × 73.05 mm
Approximate weight0.265 kg
03
Communication and Connectivity
ABB PM5072-T-2ETH 1SAP124500R0173 places two Ethernet interfaces and three option-board positions around one CPU project. The network plan should state what each physical interface carries before the cabinet is wired. The finished network record should identify which port carries plant traffic, which port carries service traffic and how the serial path is terminated, so later troubleshooting follows the designed route instead of cable labels alone.
01
Assign Ethernet roles
Give each Ethernet port a documented network, address range and service role. This prevents service traffic and controller traffic on ABB PM5072-T-2ETH 1SAP124500R0173 from being distinguished only by cable labels.
02
Reserve option positions
Choose the option boards and their positions before terminal drawings are released. The hardware list and software configuration for ABB PM5072-T-2ETH 1SAP124500R0173 must describe the same assembly.
03
Trace local signals
Map inputs, transistor outputs and both configurable points to their field-power groups. Commissioning can then follow each signal from the terminal to the project tag without reinterpreting the panel.
04
Installation Highlights
Installing ABB PM5072-T-2ETH 1SAP124500R0173 is a sequence of article verification, mechanical mounting, termination and controlled commissioning. Each step preserves the link between the physical CPU and its project record. Keeping compatibility review, unpowered assembly and staged commissioning in that order separates mechanical, supply and communication faults instead of introducing all three variables at once.
Mount before terminating
Secure the CPU and required option boards with power isolated. Land the 24 V supply and field groups only after the terminal plan has been checked against the project.
Commission by function
After polarity and load checks, verify CPU state, Ethernet links, input transitions and output commands in a controlled order; record the results against ABB PM5072-T-2ETH 1SAP124500R0173.
05
Technical Questions
Q01How should ABB PM5072-T-2ETH 1SAP124500R0173 be checked before it is used to replace another PM5072 CPU?
Compare the complete article and hardware revision, then review the option boards, Ethernet assignments, terminal directions and project-software level. ABB PM5072-T-2ETH 1SAP124500R0173 should be accepted as a complete configuration, not from the PM5072 name alone.
Q02Why can an Ethernet link be active while ABB PM5072-T-2ETH 1SAP124500R0173 is still unavailable to the control project?
A live link only proves the physical connection. Confirm the port role, IP settings, project download and controller state for ABB PM5072-T-2ETH 1SAP124500R0173, then check that the engineering station is addressing the intended interface.
Q03What causes a field output on ABB PM5072-T-2ETH 1SAP124500R0173 to behave differently after a project transfer?
Check the terminal map and the direction assigned to the two configurable I/O points before blaming the load. ABB PM5072-T-2ETH 1SAP124500R0173 must have the same option-board and I/O configuration as the source project.
Q04What information prevents the wrong option board from being supplied with ABB PM5072-T-2ETH 1SAP124500R0173?
Provide the required option function, slot position, existing project reference and full CPU article. Those details keep the option-board request tied to ABB PM5072-T-2ETH 1SAP124500R0173 instead of a generic AC500-eCo description.
Q05How should the 24 V supply for ABB PM5072-T-2ETH 1SAP124500R0173 be commissioned?
Keep power isolated while polarity, terminal grouping and field-load separation are checked. Energize ABB PM5072-T-2ETH 1SAP124500R0173 first, confirm its status, and then add controlled field loads rather than applying the full cabinet load at once.
Q06Which records should remain with ABB PM5072-T-2ETH 1SAP124500R0173 after commissioning?
Retain the complete article, hardware revision, project version, Ethernet addresses, installed option boards and I/O test results. This gives future work on ABB PM5072-T-2ETH 1SAP124500R0173 a verified starting point.
