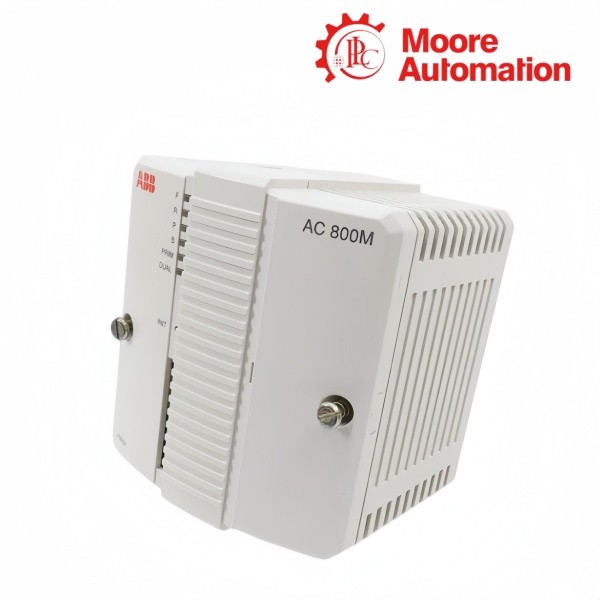

Copy| Product Name | ABB PM862K01 3BSE076940R1 / PM863K01 3BSE088381R1 AC 800M Controller Kits |
| Item NO. | 2928394 |
| Weight | 0.1 kg = 0.2205 lb = 3.5274 oz |
| Category | ABB |
| Brand | ABB |
| Creation Time | 2026-10-30 |
ABB PM862K01 3BSE076940R1 / ABB PM863K01 3BSE088381R1 are AC 800M controller kits that run the station application and coordinate control-network, serial and ModuleBus traffic through the TP830 processor base. PM862K01 is the standard controller record; PM863K01 is the high-integrity controller record.
Execution role and engineering environment distinguish ABB PM862K01 3BSE076940R1 / ABB PM863K01 3BSE088381R1. PM862K01 is used for standard process control, whereas PM863K01 adds the high-integrity path and therefore remains tied to the specified certified software and project configuration.
For installation, ABB PM862K01 3BSE076940R1 / ABB PM863K01 3BSE088381R1 use the documented processor-kit accessories, power connector, bus terminators and memory-backup arrangement. Commissioning confirms the exact CPU identity, project download, communication addresses and connected I/O before outputs are enabled.
| Technical item | PM862K01 3BSE076940R1 | PM863K01 3BSE088381R1 |
|---|---|---|
| Brand | ABB | |
| Product Name | AC 800M Controller Kit | AC 800M High Integrity Controller Kit |
| Country | Switzerland | |
| Controller Role | Standard process controller | High Integrity controller |
| SDRAM | 32 MB | |
| Firmware Flash | 4 MB | |
| Relative Performance | Approx. 0.7 × PM864A | Higher-performance high-integrity execution |
| Power Supply | 24 V DC nominal; 19.2 to 30 V DC | |
| Current Consumption | 210 mA typical; 360 mA maximum | |
| Power Dissipation | 5.1 W typical; 8.6 W with full bus supply | |
| Power Reservoir | 5 ms | |
| Protection Rating | IP20 | |
| Baseplate | TP830 | |
| Dimensions | 119 × 186 × 135 mm | |
| Package Weight | Approx. 1.2 kg | |
The CPU executes the downloaded tasks and exchanges process data with local and remote I/O during each configured cycle. Commissioning watches task overrun and controller-load indications while representative field traffic is present.
Ethernet, serial and expansion-interface traffic share processor time with the control application. Network polling and CEX activity are therefore introduced before the final cycle-time and response checks are accepted.
When redundancy is configured, execution performance is checked with both controllers synchronized and all required network paths available. A controlled switchover confirms that the backup has the current project and state before it assumes the primary role.
CN1 and CN2 connect the controller to the configured control network; addresses, supervision and redundancy mode are defined in the station project. Link indications and peer communication are proved before application outputs are enabled.
ModuleBus carries process values to and from S800 I/O, while the CEX bus accepts documented communication interfaces. Each bus receives the correct terminator at its physical endpoint so an open expansion path is not mistaken for a module fault.
COM4 or the configured control-network route provides engineering access for download and diagnostics. The hardware library and downloaded project must identify PM862K01 standard control or PM863K01 high-integrity operation before commissioning continues.
Moore Automation can retain model photographs, revision references and supporting documents with one industrial automation enquiry.
This compact service record keeps controller, baseplate and communication details visible for review without promising a substitute or unverified compatibility.
