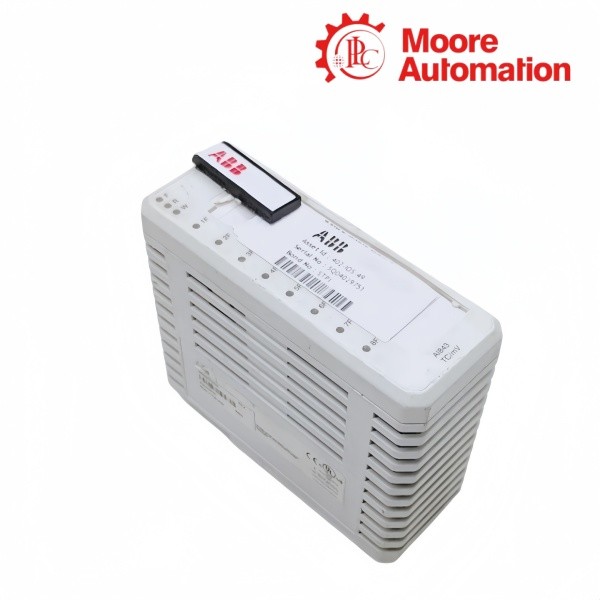

Copy| Product Name | ABB AI843 3BSE028925R1 S800 I/O Thermocouple / mV Input Module |
| Item NO. | 2928409 |
| Weight | 0.1 kg = 0.2205 lb = 3.5274 oz |
| Category | ABB |
| Brand | ABB |
| Creation Time | 2026-10-30 |
ABB AI843 3BSE028925R1 is an S800 I/O eight-channel analog input module for thermocouple and millivolt signals. It converts low-level field voltages into controller input values and keeps all eight channels in one documented group with the reference-junction and diagnostic functions required by the selected measurement configuration.
The signal path of ABB AI843 3BSE028925R1 accepts the configured thermocouple type or a −30 to +75 mV source, applies 16-bit conversion and transfers the values through the S800 I/O station. The reference-junction input supports thermocouple compensation, while channel and module diagnostics distinguish sensor or configuration problems from a healthy measured value.
Mounting ABB AI843 3BSE028925R1 requires one of the documented S800 MTUs and the matching channel-terminal map. Redundant or single operation is selected in the approved I/O arrangement, and thermocouple extension wire, polarity and reference-junction placement are verified before the controller values are accepted.
| Brand | ABB |
|---|---|
| Model | AI843 3BSE028925R1 |
| Product Name | S800 I/O 8-channel Thermocouple / mV Input Module |
| Country | Switzerland |
| System Family | S800 I/O |
| Channel Count | 8 analog inputs plus reference junction |
| Channel Grouping | 1 group of 8 channels |
| Signal Types | Thermocouple and millivolt |
| Thermocouple Types | B, C, E, J, K, L, N, R, S, T and U |
| Millivolt Range | −30 to +75 mV |
| Resolution | 16 bit |
| Operation | Single or redundant configuration |
| Rated Isolation | 50 V |
| Diagnostics | Extended channel and module diagnostics |
| Compatible MTUs | TU818, TU830, TU833, TU842, TU843 and TU852 |
Each channel receives the low-level field voltage selected by its thermocouple or millivolt configuration. Polarity and sensor wiring are preserved through the MTU so the converter works on the intended signal rather than an unintended junction voltage.
The dedicated reference-junction input supplies the terminal-temperature reference used to compensate thermocouple channels. This keeps cold-junction correction separate from the process sensor value and from a plain millivolt measurement.
Converted values, channel status and module diagnostics pass through the S800 I/O station to the controller with channel identity preserved. The controller can therefore associate a bad-sensor indication with the same channel that supplies the process value.
One module can be configured for the documented thermocouple families used by the project. Each channel retains its selected conversion, allowing several supported sensor types to be organized in the same S800 station without treating every input as generic millivolts.
The millivolt mode accepts low-level voltage sources whose engineering conversion is handled in the controller project. This path is used without thermocouple compensation, so cable polarity and the source reference remain the defining wiring checks.
Where the approved architecture uses redundant AI843 channels, corresponding sensors and values are mapped through the documented MTU and project arrangement. Commissioning compares both paths and their diagnostic states before the redundant result is trusted.
