Electrical Class
The official portfolio identifies a 1700 V blocking-voltage class and a 2 × 200 A current rating.
62PAK POWER SEMICONDUCTOR

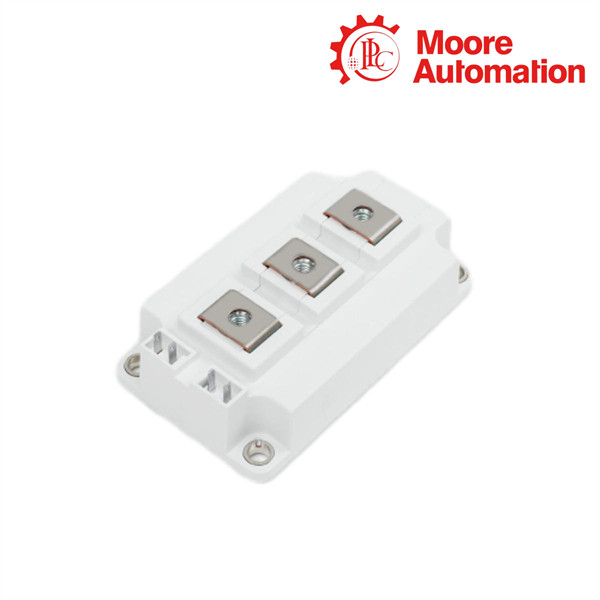

ABB 5SNG0200Q170300
ABB 5SNG0200Q170300
IGBT Module
A 1700 V, 2 × 200 A phase-leg IGBT module using an ultra-low-loss, rugged SPT++ chip-set and a copper baseplate for medium-power conversion designs.
PHASE-LEG IGBT62PAK
5SNG0200Q170300
1700 V · 2 × 200 A
1700 V · 2 × 200 A
1700 VVCES CLASS
2 × 200 AIC RATING
Phase LegTOPOLOGY
62PakPACKAGE
Product Description
Fast-Switching 62Pak Phase-Leg Module
ABB 5SNG0200Q170300 is a 62Pak phase-leg IGBT module rated at 1700 V and 2 × 200 A. The manufacturer describes the module with an ultra-low-loss, rugged SPT++ chip-set and smooth switching behavior intended to support good electromagnetic compatibility.
The 62Pak family is positioned as a fast-switching, medium-power IGBT platform. The module uses a copper baseplate, while the standard package format supports practical integration into compatible power-conversion assemblies.
The model remains present in the current manufacturer semiconductor portfolio. Because exact operating limits depend on the full official datasheet and the application conditions, design decisions must be based on the latest controlled datasheet revision rather than the headline ratings alone.
Officially Confirmed Data
ABB 5SNG0200Q170300 Specifications
Original Product Identification
ABB 5SNG0200Q170300 / 5SNG 0200Q170300
Current Portfolio Owner
Hitachi Energy semiconductor portfolio (following the ABB Power Grids transition)
Product Type
Phase-leg IGBT module
Package
62Pak
Collector-Emitter Voltage Class
VCES = 1700 V
Collector Current Rating
IC = 2 × 200 A
Chip Technology
Ultra-low-loss, rugged SPT++ chip-set
Switching Characteristic
Smooth-switching SPT++ chip-set for good EMC
Baseplate
Copper baseplate
Current Public Offer Status
Listed in the manufacturer semiconductor portfolio with a request option
Public Discontinuation Date
No official discontinuation date found
Official Direct Replacement
No one-for-one successor identified in the reviewed manufacturer sources
Technology Highlights
What Buyers Usually Need to Know
Phase-Leg Topology
Two switching positions are integrated in the phase-leg module arrangement.
SPT++ Technology
The rugged, ultra-low-loss chip-set is paired with smooth switching for good EMC behavior.
Thermal Integration
The copper baseplate is part of the module construction; the complete cooling design still requires engineering validation.
Digital Model Support
The current manufacturer portfolio lists a PLECS XML model for this part number.
Medium-Power Platform
62Pak is presented by the manufacturer as a fast-switching medium-power IGBT module family.
Engineering Checks
Do Not Select by Part Number Alone
- Confirm the complete nameplate and exact 5SNG0200Q170300 part number.
- Validate DC-link voltage, transient overshoot and required safety margin.
- Check continuous, peak and RMS current under the real switching pattern.
- Recalculate conduction and switching losses at the intended gate resistance and frequency.
- Verify gate-driver voltage, isolation, protection and short-circuit strategy.
- Match package outline, terminal positions, busbar layout and creepage/clearance.
- Follow 62Pak mounting instructions for baseplate, interface and heat-sink preparation.
- Commission only after thermal and protection validation by qualified engineers.
Lifecycle & Replacement
No Official Discontinuation or Direct Successor Identified
Current official evidence: 5SNG 0200Q170300 remains listed in the current manufacturer IGBT module portfolio with a request option. The reviewed official pages do not publish a discontinuation date, last-time-buy date, support end date or designated one-for-one replacement.
Related 62Pak models are not drop-in substitutes
The same official 1700 V table also lists 5SNG 0150Q170300 at 2 × 150 A and 5SNG 0300Q170300 at 2 × 300 A. Their different current ratings mean neither should be described as a complete replacement for 5SNG0200Q170300.
No automatic replacement: a higher current rating does not by itself prove compatible switching losses, gate charge, thermal impedance, terminal behavior or system protection.
What a replacement review must cover
- Same phase-leg topology and voltage class
- Continuous, repetitive and overload current capability
- Gate charge, gate resistance and driver compatibility
- Turn-on/turn-off energy and switching frequency
- Diode behavior and safe operating areas
- Thermal impedance and heat-sink capacity
- 62Pak outline, terminals and mounting interfaces
- Insulation, EMC and protection coordination
Buyer Guide
Information to Send with Your Inquiry
Supplying application details helps distinguish a like-for-like spare request from an engineered substitution and reduces ordering or commissioning risk.
Nameplate & Quantity
Send clear photos of the complete label, module, terminals and installed position, plus the required quantity.
Converter Conditions
Provide DC-link voltage, load current, switching frequency, gate-driver data and equipment model.
Cooling & Mounting
Include heat-sink details, cooling method, busbar arrangement, terminal layout and installation photos.
Submit the exact model
Nameplate, quantity and equipment details.
Nameplate, quantity and equipment details.
Review compatibility
Electrical, thermal, driver and mechanical requirements.
Electrical, thermal, driver and mechanical requirements.
Confirm the quotation
Supply details matched to the requested part number.
Supply details matched to the requested part number.
Buyer Support
Frequently Asked Questions
What type of module is ABB 5SNG0200Q170300?
5SNG0200Q170300 is a 62Pak phase-leg IGBT module. The official headline ratings are VCES = 1700 V and IC = 2 × 200 A.
Which technology does 5SNG0200Q170300 use?
The official product description identifies an ultra-low-loss, rugged SPT++ chip-set with smooth switching for good EMC, together with a copper baseplate.
Has ABB 5SNG0200Q170300 been discontinued?
No official discontinuation statement or date was found. The model remains listed in the current manufacturer semiconductor portfolio with a request option.
Can 5SNG0300Q170300 completely replace 5SNG0200Q170300?
No. The official table gives 5SNG0300Q170300 a different 2 × 300 A current rating. A higher rating does not establish drop-in compatibility; electrical, switching, gate-drive, thermal, mechanical and protection parameters must all be reviewed.
What should a buyer provide before ordering 5SNG0200Q170300?
Provide the full nameplate, quantity, equipment model, module and terminal photos, DC-link voltage, operating current, switching frequency, gate-driver data, cooling arrangement and any requirement for an exact spare or engineered alternative.
