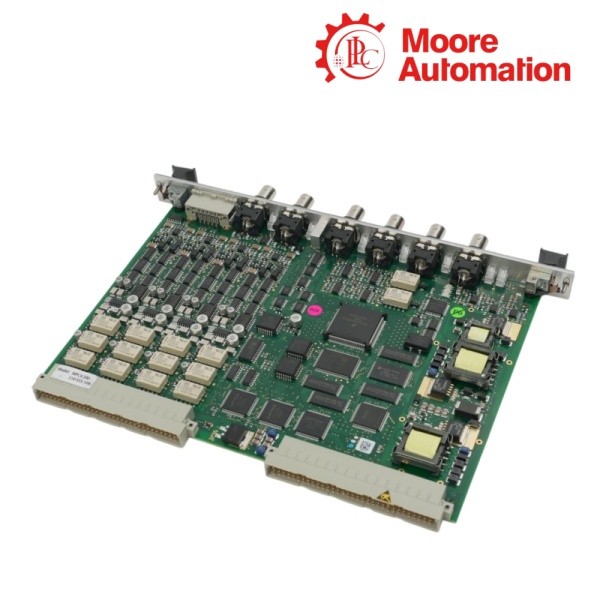

Vibro-Meter MPC4 Mk2 600-041 VM600Mk2 MPC4Mk2 processing module
Product Overview
The Vibro-Meter MPC4 Mk2 600-041 is the standard VM600Mk2 MPC4Mk2 processing module without a pre-installed condition-monitoring license. It processes the connected vibration, speed and auxiliary signals for machinery-protection functions inside a VM600Mk2 rack.
For MPC4 Mk2 600-041, the module combines the processing electronics, front BNC interfaces and Ethernet communication path for the MPC4Mk2 + IOC4Mk2 pair. Its configuration is software-defined through VibroSight Protect, while the associated IOC4Mk2 provides the rear field connectors and stores a copy of the module configuration.
For MPC4 Mk2 600-041, the 600-041 ordering number identifies the standard no-CMS-license family; the underlying module version carries additional hardware-version digits. Machinery protection is available by default, while condition monitoring requires the appropriate license and software edition.
Technical Specifications
| Technical Item | MPC4 Mk2 600-041 |
|---|---|
| Brand | Vibro-Meter |
| Product Type | VM600Mk2 MPC4Mk2 processing module |
| Ordering Number | 600-041 |
| Configuration | Standard, no CMS license pre-installed |
| Rack Height | 6U / 262 mm |
| Width | 20 mm |
| Depth | 187 mm |
| Dynamic Channels | CH1 to CH4 |
| Auxiliary Channels | AX1 and AX2 |
| Ethernet | 10/100BASE-TX via RJ45 |
| Local Analog Outputs | 4 configurable outputs |
| Relays | 4 user relays plus FAULT through IOC4Mk2 |
| Module Power | <6 W |
| Configuration Software | VibroSight Protect / Capture |
Configuration and Programming — MPC4Mk2 Setup
MPC4 Mk2 600-041 is configured through the VM600Mk2 software path rather than by changing its front connectors.
License boundary
The 600-041 family has no pre-installed CMS license; condition monitoring requires a compatible license and software edition.
Stored configuration
The associated IOC4Mk2 stores a copy of the configuration so the processing module can be reconfigured after replacement.
Monitoring and Control — Rack Processing
The MPC4Mk2 receives the measured channels, evaluates the configured protection functions and exposes local status and communication interfaces.
Dynamic inputs
CH1 to CH4 are handled as dynamic measurement channels through the MPC4Mk2/IOC4Mk2 pair.
Auxiliary inputs
AX1 and AX2 can carry auxiliary or tachometer-related signals according to the system configuration.
System Ethernet
The RJ45 interface connects the module pair to a computer running VibroSight software.
Frequently Asked Questions
Which IOC4 Mk2 pairing and rack slot must be confirmed before commissioning Vibro-Meter MPC4 Mk2 600-041?
Install Vibro-Meter MPC4 Mk2 600-041 with the specified IOC4Mk2 partner and the correct VM600Mk2 rack position. Check rear connector access and the stored configuration before applying field signals, because the processing card depends on the paired I/O card.
How should the missing CMS license on Vibro-Meter MPC4 Mk2 600-041 affect configuration planning?
Plan Vibro-Meter MPC4 Mk2 600-041 as the standard no-CMS-license module unless the required license and software edition are provided. Machinery protection can be configured in VibroSight Protect, but condition-monitoring functions must not be assumed from the base ordering number.
Which network checks should be made when the Ethernet connection to Vibro-Meter MPC4 Mk2 600-041 is unavailable?
Verify the active RJ45 location, cable link and VibroSight network configuration for Vibro-Meter MPC4 Mk2 600-041. The paired MPC4Mk2/IOC4Mk2 hardware exposes the Ethernet path through the permitted connector location, so do not use both locations as simultaneous links.
Is there enough rack and cable clearance for the front interfaces of Vibro-Meter MPC4 Mk2 600-041?
Reserve the VM600Mk2 slot and front BNC/Ethernet access needed by Vibro-Meter MPC4 Mk2 600-041 before installing the card. Keep the rear IOC4Mk2 cable path clear as well, because the pair shares the signal and configuration path.
What version and configuration records should be checked before replacing Vibro-Meter MPC4 Mk2 600-041?
Match the hardware version, firmware, license state and IOC4Mk2 configuration copy before replacing Vibro-Meter MPC4 Mk2 600-041. The 600-041 designation alone does not prove that the replacement has the same licensed functions or stored setup.
How should a startup protection alarm be traced on Vibro-Meter MPC4 Mk2 600-041?
Check the configured channel, paired IOC4Mk2 wiring and active protection settings in sequence for Vibro-Meter MPC4 Mk2 600-041. Then verify the input signal and relay path; changing the CMS license cannot correct a wrong field termination.
