Execute the application
The 3009X processor runs the control program independently for its channel.

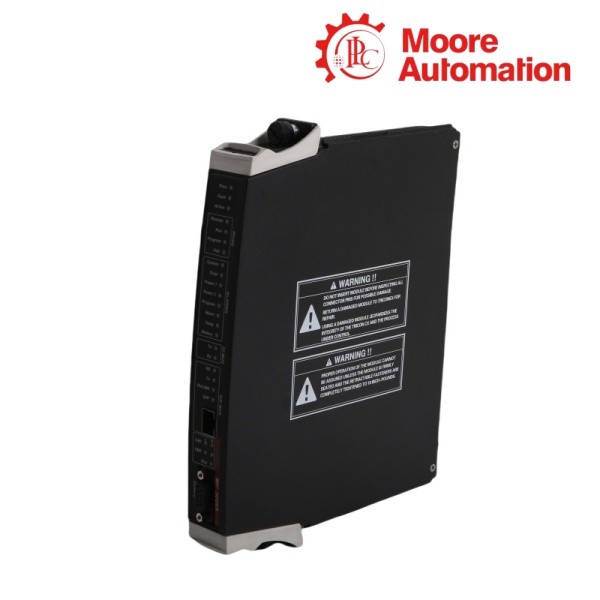

Triconex 3009X Tricon CX main processor module
Model Description
Triconex 3009X is the main processor module for a Tricon CX safety controller installed in the Model 8120X main chassis. Three 3009X modules occupy the controller, one per channel, so each channel executes the application and exchanges data with its assigned I/O path before information is compared across the three-channel architecture.
Inside 3009X, the QorIQ P1021 processor executes the control application while three memory areas serve different data roles. DRAM supports active processing, battery-backed SRAM retains designated data, and Flash PROM provides nonvolatile program storage.
Communication on 3009X is separated by destination. The isolated TriBus exchanges protected data among controller channels, the backplane Ethernet interface serves chassis expansion, RS-485 and SFP Ethernet carry the documented I/O paths, and the isolated RS-232 connector is reserved for diagnostic access.
Technical Parameters
| Technical Item | 3009X |
|---|---|
| Brand | Triconex (Schneider Electric) |
| Product Type | Tricon CX main processor module |
| Product Platform | Tricon CX safety controller |
| Compatible Main Chassis | 8120X |
| Controller Arrangement | Three main processors per chassis |
| Processor | QorIQ P1021 |
| Processor Cores | Dual core |
| Processor Clock | 800 MHz |
| L1 Cache | 32 KB |
| L2 Cache | 256 KB |
| DRAM | 256 MB |
| Battery-Backed SRAM | 2 MB |
| Flash PROM | 128 MB |
| TriBus Data Protection | 32-bit CRC protected |
| TriBus Transfer | 32-bit DMA, fully isolated |
| TriBus Speed | 1000 Mbps |
| Diagnostic Port | Optically isolated 9-pin RS-232; 500 V DC isolation |
| Expansion Interface | 100 Mbps copper Ethernet, RJ-45 on backplane |
| I/O Interfaces | RS-485 at 375 Kbps; SFP Ethernet IOP bus up to 20 km |
Product Functions — Independent Controller Channel
Each 3009X serves one of the three processing channels that form the Tricon CX controller.
Communicate with I/O
Each 3009X exchanges data with its assigned I/O subsystem instead of sharing processor resources.
Compare channel data
The three 3009X modules compare data and program state at regular intervals across the controller architecture.
Communication and Connectivity — Processor Interfaces
The ports and buses on 3009X separate internal channel exchange, chassis expansion, I/O transport, and diagnostic access.
TriBus exchange
The 1000 Mbps TriBus on 3009X uses 32-bit CRC protection and isolated DMA transfer.
Expansion path
A 100 Mbps copper Ethernet backplane interface links 3009X to the documented expansion communication chassis path.
Diagnostic access
The isolated RS-232 connector on 3009X provides the diagread diagnostic interface without serving as the I/O bus.
Frequently Asked Questions
Why are three 3009X modules installed in an 8120X chassis?
Each 3009X serves one independent Tricon CX controller channel. The three processors execute the application and compare channel information as part of the controller architecture.
What data should be preserved before replacing a 3009X?
Record the complete 3009X identity, chassis position, controller version, application baseline, and diagnostic state before removal. Hardware replacement does not substitute for the required safety lifecycle and application validation.
Is the RS-232 port on 3009X the process I/O network?
No. The isolated RS-232 connector on 3009X is for diagread diagnostic analysis. Process I/O communication uses the documented RS-485 and SFP Ethernet interfaces.
Why does a healthy Ethernet link not prove that 3009X is synchronized with the other channels?
An Ethernet link confirms only that a physical interface on 3009X is active. Channel comparison, TriBus status, application state, and controller diagnostics must also be checked.
Which memory in 3009X retains data with battery backup?
The 2 MB SRAM in 3009X is battery backed, while the listed 256 MB DRAM is not. The 128 MB Flash PROM is a separate nonvolatile program-storage resource.
What must follow any application or hardware change involving 3009X?
A change involving 3009X must be handled through the applicable Tricon CX safety lifecycle, including configuration control and proof testing of the affected safety functions. A successful module start alone is not final validation.
