Siemens 6SL3053-0AA00-3AA1 Voltage Sensing Module Item NO.: 6SL3053-0AA00-3AA1

Write a Review

US$ 1.00

Quantity: Stock ( 9999999 )

SINAMICS VSM10 module for precise measurement of line and motor voltage characteristics with DRIVE-CLiQ communication.

Request Price & AvailabilitySend the part number and quantity. Our team will confirm stock, condition, lead time and the best quotation.

MOQ: 1 piece
International shipping
1-year warranty on eligible items
Fast response during business hours

Product Name	Siemens 6SL3053-0AA00-3AA1 Voltage Sensing Module
Item NO.	6SL3053-0AA00-3AA1
Weight	0.48 kg = 1.0582 lb = 16.9315 oz
Category	SIEMENS
Brand	SIEMENS
Creation Time	2026-08-17

Siemens / SINAMICS VSM10

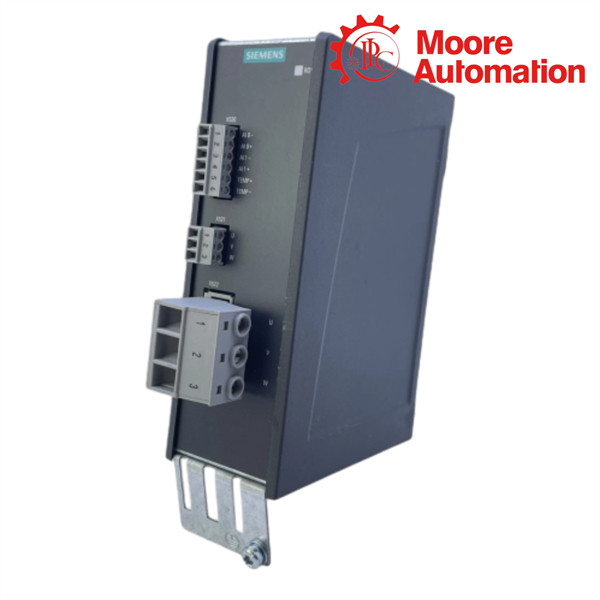

Siemens 6SL3053-0AA00-3AA1 Voltage Sensing Module

SINAMICS VSM10 module for precise measurement of line and motor voltage characteristics with DRIVE-CLiQ communication.

Product Overview

Voltage measurement for SINAMICS drive systems

Siemens 6SL3053-0AA00-3AA1 is the SINAMICS VSM10 Voltage Sensing Module. It measures the line or motor voltage characteristic and transfers the measured values to the connected drive system through DRIVE-CLiQ.

The module supports direct voltage sensing up to 690 V and voltage sensing through transformers up to 100 V. A plug-in jumper selects grounded or isolated phase differential voltage sensing, while the integrated temperature input supports approved motor-temperature sensors.

690 VMaximum direct voltage sensing

1DRIVE-CLiQ socket

0.480 kgOfficial net weight

Product Specifications

Official identification and technical data

Brand	Siemens
Order number	6SL3053-0AA00-3AA1
Product family	SINAMICS VSM10
Product type	Voltage Sensing Module
Electronics supply	24 V DC (20.4-28.8 V)
Maximum current consumption	0.2 A
Direct voltage sensing	Up to 690 V
Voltage sensing via transformers	Up to 100 V
DRIVE-CLiQ interface	1 socket

Analog input resistance	100 kohms
Analog input resolution	12 bit plus sign
X521 input resistance	Greater than 362 kohms per phase
X522 input resistance	Greater than 2.5 Mohms per phase
Maximum conductor cross-section	2.5 mm²
Mounting	TH 35 DIN rail
Dimensions (W x H x D)	50 x 150 x 111 mm
Net weight	0.480 kg
Ventilation clearance	50 mm above and below

Operating Functions

Measured values and drive communication

Voltage acquisition

Measures line or motor voltage characteristics for the connected SINAMICS drive system.

Ground reference selection

A plug-in jumper selects grounded or isolated phase differential voltage sensing.

Temperature input

Supports KTY84-130, Pt1000 and PTC temperature-sensor inputs as documented by Siemens.

Installation Highlights

DIN-rail mounting and protected field connection

Mount the VSM10 on a TH 35 DIN rail and maintain 50 mm ventilation clearance above and below the module.
Connect the protective conductor at the M4 PE connection before commissioning the voltage-sensing circuits.
Use X521 for transformer-based sensing and X522 for direct voltage sensing in accordance with the official connection diagrams.
Set the grounded or isolated sensing jumper only as specified for the intended measuring arrangement.
Keep the 24 V electronics-supply cable within the documented 30 m maximum length.

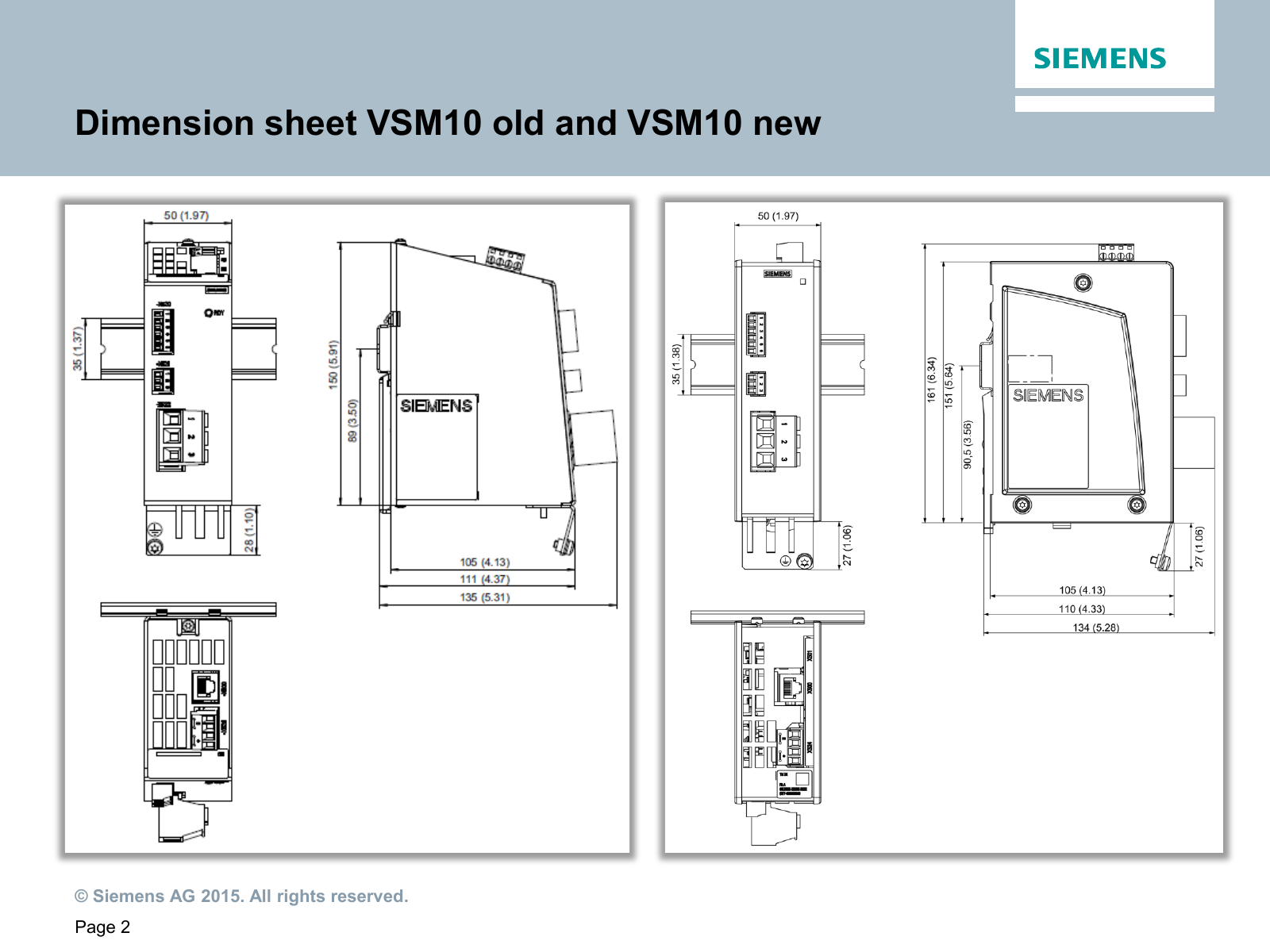

Siemens 6SL3053-0AA00-3AA1 VSM10 official dimensional drawing — Official Siemens VSM10 dimensional drawing for order number 6SL3053-0AA00-3AA1.

Installation note

The VSM10 is measuring equipment for hazardous voltages. Installation, wiring and commissioning must follow the Siemens equipment manual and the applicable electrical safety rules.

Lifecycle and Replacement Information

Official product lifecycle status

Siemens lists order number 6SL3053-0AA00-3AA1 with lifecycle status PM300 Active Product.

Active Product

FAQ

Frequently asked questions about 6SL3053-0AA00-3AA1

What does Siemens 6SL3053-0AA00-3AA1 identify?

It identifies the SINAMICS VSM10 Voltage Sensing Module.

What is the maximum direct sensing voltage?

The module supports direct voltage sensing up to 690 V.

What is the transformer-based sensing limit?

Voltage sensing through transformers is specified up to 100 V.

How does the VSM10 communicate with the drive system?

It provides one DRIVE-CLiQ socket.

What are the module dimensions and net weight?

The dimensions are 50 x 150 x 111 mm, and the Siemens product data lists a net weight of 0.480 kg.
