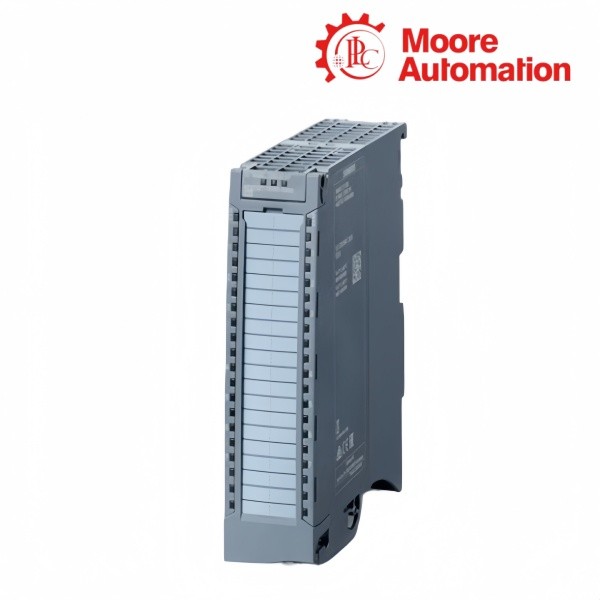

Copy| Product Name | Siemens 6ES7521-7EH00-0AB0 | SIMATIC S7-1500 Digital Input Module |
| Item NO. | 2927530 |
| Weight | 0.1 kg = 0.2205 lb = 3.5274 oz |
| Category | SIEMENS |
| Brand | SIEMENS |
| Creation Time | 2026-10-27 |
Siemens · Industrial Automation
Sixteen individually isolated UC inputs for 24 to 125 V field circuits.
Siemens 6ES7521-7EH00-0AB0 is the SIMATIC S7-1500 DI 16x24...125VUC HF digital input module for AC or DC field signals. Its sixteen inputs are arranged as isolated groups of one, so each channel can receive its own referenced 24 to 125 V UC circuit instead of sharing one group common across several points.
At the field boundary, Siemens 6ES7521-7EH00-0AB0 applies the configured 0.05 ms to 20 ms input delay before placing channel state on the backplane bus. Channel LEDs, module diagnostics and hardware-interrupt options let the CPU distinguish ordinary switching from supported events such as wire break, missing supply or signal-edge changes.
For channels 0 and 1, Siemens 6ES7521-7EH00-0AB0 from hardware functional status FS04 also supports counter operation. Those channels can count pulse edges while the remaining inputs continue as digital points, which makes the exact hardware status and parameter set part of the commissioning record rather than a generic DI-module assumption.
| Brand | Siemens |
|---|---|
| Model | 6ES7521-7EH00-0AB0 |
| Product Name | SIMATIC S7-1500 DI 16x24...125VUC HF |
| Country | Germany |
| Input Channels | 16 digital inputs |
| Input Voltage | 24 to 125 V UC |
| Channel Grouping | 16 groups of 1; individually isolated |
| Input Type | Type 3 to IEC 61131 |
| Input Delay | 0.05 ms to 20 ms; parameterizable |
|---|---|
| Counter Channels | Channels 0 and 1 from FS04 |
| Hardware Interrupts | Supported on configured signal edges |
| Diagnostics | Channel and module diagnostics supported |
| Connection | 40-pole front connector |
| Dimensions (W × H × D) | 35 × 147 × 129 mm |
| Approximate Weight | 260 g |
Siemens 6ES7521-7EH00-0AB0 separates the condition of each field point from the overall module state, so one faulty circuit can be investigated without treating all sixteen inputs as one group.
Siemens 6ES7521-7EH00-0AB0 associates each input with a status LED and supported channel diagnostics. Compare the LED, process image and diagnostic buffer before deciding whether the problem is in the field circuit or the PLC program.
When enabled for the installed circuit, Siemens 6ES7521-7EH00-0AB0 can report a missing supply or wire condition. The maintenance check should still measure the field voltage at the assigned terminal because a diagnostic event identifies a condition, not the physical cause.
Hardware interrupts on Siemens 6ES7521-7EH00-0AB0 can react to selected edges. The interrupt OB must record the channel and event quickly enough that a short pulse is not confused with a persistent input state.
Siemens 6ES7521-7EH00-0AB0 links isolated high-voltage field contacts to the S7-1500 backplane while keeping input filtering, counter use and CPU event processing in one hardware configuration.
Assign the field contact, circuit voltage and front-connector terminal for every used channel on Siemens 6ES7521-7EH00-0AB0. This prevents a 125 V circuit from being traced as though it shared a 24 V group common.
Configure the delay, diagnostics and interrupt edges for Siemens 6ES7521-7EH00-0AB0 before download. If channels 0 or 1 are used as counters, reserve their counter addresses and functions explicitly.
Operate each field contact and compare the terminal voltage, channel LED, process image and program response of Siemens 6ES7521-7EH00-0AB0. Record the result before enabling automatic sequences that depend on the input.
For Siemens 6ES7521-7EH00-0AB0, compare the physical channel number with the configured start address and the tag used by the program. An LED confirms the terminal state; it does not confirm that the program reads the same address or that the input is outside an interrupt-only path.
A long input delay on Siemens 6ES7521-7EH00-0AB0 can filter a pulse before it reaches the process image. Review the configured delay and, for suitable signals on channels 0 or 1, evaluate the documented counter function instead of only shortening the cyclic program.
Measure the affected Siemens 6ES7521-7EH00-0AB0 circuit at the front connector, verify the external supply and inspect the field contact and return conductor. Clear the diagnostic only after the electrical path and channel parameter agree.
Siemens 6ES7521-7EH00-0AB0 has individually isolated channels within its specified UC range, but each circuit must keep its own documented reference, protection and separation. The cabinet design must still satisfy the applicable voltage and wiring rules.
Confirm that Siemens 6ES7521-7EH00-0AB0 is hardware status FS04 or later, that channel 0 or 1 is parameterized for counting, and that the pulse voltage and timing meet the input limits. A normal digital-input configuration will not expose the counter data.
Keep the exact Siemens 6ES7521-7EH00-0AB0 article number, hardware status, start address, per-channel delays, diagnostics, interrupt edges, counter assignments and front-connector schedule. These settings determine behavior after the physical module is exchanged.
