Copy| Product Name | Siemens 6ED1055-4MH08-0BA1 / 6ED1055-4MH08-0BA0 | LOGO! Text Display Generations |
| Item NO. | 2927538 |
| Weight | 0.1 kg = 0.2205 lb = 3.5274 oz |
| Category | SIEMENS |
| Brand | SIEMENS |
| Creation Time | 2026-10-27 |
Siemens · Industrial Automation
Six-line external operator displays with two Ethernet interfaces.

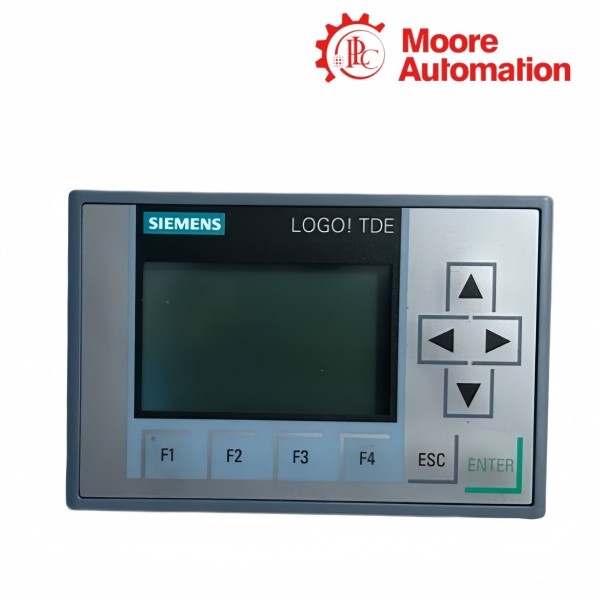

Siemens 6ED1055-4MH08-0BA1 / 6ED1055-4MH08-0BA0 are LOGO! TDE external text displays for operator messages and key-based interaction with a LOGO! installation. Both provide a six-line display, selectable white, amber or red background lighting and two Ethernet interfaces.
On the network, Siemens 6ED1055-4MH08-0BA1 / 6ED1055-4MH08-0BA0 receive configured message texts and variables from the associated LOGO! project rather than directly controlling field terminals. Mounting cutout, 12/24 V DC supply, Ethernet addressing and project device assignment must all agree before a message can appear.
The suffix distinguishes the product generation of Siemens 6ED1055-4MH08-0BA1 / 6ED1055-4MH08-0BA0. Retain the exact article and the matching LOGO! Soft Comfort project so keys, message pages and supported generation behavior are not carried across on the assumption that the front appearance alone proves interchangeability.
| Technical Item | 6ED1055-4MH08-0BA1 | 6ED1055-4MH08-0BA0 |
|---|---|---|
| Brand | Siemens | |
| Product Name | LOGO! TDE | |
| Country | Germany | |
| Product Generation | Current -0BA1 record | Preceding -0BA0 record |
| Supply | 12/24 V DC | |
| Display | 6 lines | |
| Background Colors | White, amber, red | |
| Ethernet Interfaces | 2 | |
| Operator Keys | 4 function keys plus navigation | |
| Configuration | LOGO! Soft Comfort project | |
| Mounting | Panel installation | |
| Display Resolution | 160 × 96 pixels | |
| Permissible Supply Range | 20.4 to 26.4 V AC; 10.2 to 28.8 V DC | |
| Typical Current Consumption | 150 mA at 12 V DC; 75 mA at 24 V DC; 145 mA at 24 V AC | |
| Degree of Protection | IP20 body; IP65 front | |
| Maximum Connection Distance | 30 m | |
| Backlight / Display Life | 20,000 h / 50,000 h | |
| Mounting Cutout | 119 +0.5 × 78.5 +0.5 mm | |
| Dimensions (W × H × D) | 128.2 × 86 × 38.7 mm | |
| Approximate Weight | 220 g | |
Siemens 6ED1055-4MH08-0BA1 / 6ED1055-4MH08-0BA0 place operator text and key events on the LOGO! Ethernet path. Communication setup is complete only when the display has a unique network identity, the correct LOGO! partner and verified variable and key bindings.
Assign a unique IP address and the intended LOGO! partner to Siemens 6ED1055-4MH08-0BA1 / 6ED1055-4MH08-0BA0 before downloading message pages. Reserve the display address in the network plan, connect one service path at a time and verify the selected partner before downloading message pages.
Document which Siemens 6ED1055-4MH08-0BA1 / 6ED1055-4MH08-0BA0 Ethernet port continues the local network so service work does not break the chain. Document both Ethernet ports and the downstream cable so removing the display for service does not unexpectedly interrupt another device.
Map each displayed value and key action of Siemens 6ED1055-4MH08-0BA1 / 6ED1055-4MH08-0BA0 to the intended LOGO! program object. Test each value, alarm color and key command against the linked program object and record the result page by page.
Install Siemens 6ED1055-4MH08-0BA1 / 6ED1055-4MH08-0BA0 as a panel operator device, then prove supply, network and project assignment in that order. A clean installation aligns the panel cutout, power wiring, Ethernet bend space and operator sight line before the device is tightened into place.
Use the documented cutout and clearance so Siemens 6ED1055-4MH08-0BA1 / 6ED1055-4MH08-0BA0 seats without stressing the housing or cable connectors. Mark and cut the panel from the documented opening, deburr it and check the sealing surface before inserting the display housing.
Keep the 12/24 V DC supply correctly polarized and route Siemens 6ED1055-4MH08-0BA1 / 6ED1055-4MH08-0BA0 Ethernet separately from noisy power conductors. Route low-voltage supply and Ethernet away from noisy power conductors, leave service slack and confirm polarity before energizing the unit.
Open each message page and operate every assigned key on Siemens 6ED1055-4MH08-0BA1 / 6ED1055-4MH08-0BA0 while observing the linked LOGO! variables. After mounting, inspect the front fit, open every message page and operate every assigned key while watching the corresponding LOGO! variable online.
Check supply, Ethernet link, IP addressing, selected LOGO! partner and downloaded message configuration for Siemens 6ED1055-4MH08-0BA1 / 6ED1055-4MH08-0BA0.
Confirm the key is assigned in the project and that the linked LOGO! variable permits the command; Siemens 6ED1055-4MH08-0BA1 / 6ED1055-4MH08-0BA0 keys are not hardwired outputs.
Review the exact generation and project compatibility of Siemens 6ED1055-4MH08-0BA1 / 6ED1055-4MH08-0BA0 before replacement, even though both are LOGO! TDE records.
Check communication status, variable mapping and update path between Siemens 6ED1055-4MH08-0BA1 / 6ED1055-4MH08-0BA0 and the selected LOGO! base module.
Assign white, amber and red in the Siemens 6ED1055-4MH08-0BA1 / 6ED1055-4MH08-0BA0 project to defined machine states, then test every transition with the operator text.
Retain the exact Siemens 6ED1055-4MH08-0BA1 / 6ED1055-4MH08-0BA0 article, project, IP settings, partner assignment, page texts and key mappings.
Moore Automation can coordinate enquiries for current and earlier industrial automation article records when the complete identifier and quantity are supplied.
Available product information can be reviewed with the request; this does not promise a substitute, stock, fixed delivery or technical resolution.
