Siemens 6AG1443-1EX30-4XE0 SIPLUS NET CP 443-1 PROFINET Processor

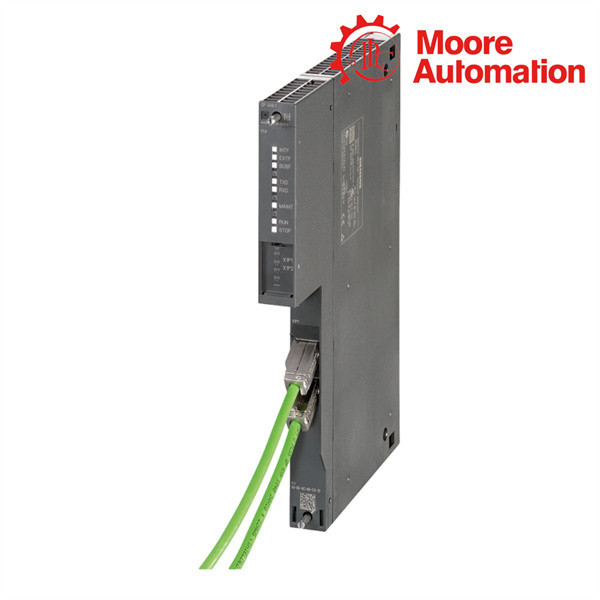

A conformal-coated SIPLUS NET CP 443-1 communication processor with two 10/100 Mbps RJ45 ports for S7-400 Industrial Ethernet and PROFINET integration.
Product Profile
Industrial Ethernet and PROFINET IO services for S7-400
Siemens 6AG1443-1EX30-4XE0 is a SIPLUS NET CP 443-1 based on 6GK7443-1EX30-0XE0. It has conformal coating and a stated operating temperature range of 0 to 60 °C.
Two 10/100 Mbps RJ45 ports form the Industrial Ethernet interface. The processor supports ISO, TCP, UDP, S7 communication, open SEND/RECEIVE communication and S7 routing.
The module can operate as a PROFINET IO controller and provides DHCP/block IP configuration, IP access control, time synchronization, extended web diagnostics, fast startup and PROFIenergy support.
Technical Data
Official data for 6AG1443-1EX30-4XE0
Only values stated by Siemens for this article number or its explicitly identified base module are shown.
Technical data
| Product type | CP 443-1 |
|---|---|
| Industrial Ethernet interfaces | 2 x RJ45 |
| Transfer rate | 10 to 100 Mbit/s |
| PROFINET IO controller | Yes |
| PROFINET IO devices | Up to 128 |
| PROFINET IRT devices | Up to 64 |
| S7 communication connections | Up to 128 |
| Open communication connections | Up to 64 |
| Protocols | ISO, TCP, UDP, S7, PROFINET |
| Network redundancy | MRP supported |
Power, environment and mechanics
| Backplane supply | 5 V DC |
|---|---|
| Typical current from backplane | 1.4 A |
| Power loss | 7.25 W |
| Operating temperature | 0 to 60 °C |
| Storage and transport temperature | -40 to 70 °C |
| Maximum installation altitude | 5000 m |
| Degree of protection | IP20 |
| Dimensions | 25 x 290 x 210 mm (W x H x D) |
| Net weight | 0.7 kg |
| Maximum modules per CPU | 14; maximum 4 as PN IO controller |
Key Features
Multi-protocol communication and network diagnostics
PROFINET IO controller
The CP can control up to 128 PROFINET IO devices, including up to 64 IRT devices.
Open communication
ISO, TCP and UDP communication is supported through SEND/RECEIVE and T blocks.
S7 communication and routing
The processor supports S7 communication and S7 routing.
Network management
DHCP, access control, time synchronization, web diagnostics, fast startup and PROFIenergy are listed.
System Integration
System integration in an S7-400 Industrial Ethernet network
The single-width CP 443-1 connects through two RJ45 ports and obtains its 5 V DC supply from the S7-400 backplane.
FAQ
Questions about Siemens 6AG1443-1EX30-4XE0
What is Siemens 6AG1443-1EX30-4XE0?
It is a conformal-coated SIPLUS NET CP 443-1 communication processor for SIMATIC S7-400.
How many Ethernet ports are provided?
The module has two RJ45 ports operating at 10 to 100 Mbit/s.
Can it operate as a PROFINET IO controller?
Yes. Siemens states support for up to 128 PROFINET IO devices, including up to 64 IRT devices.
Which open communication protocols are supported?
The official technical data lists ISO, TCP and UDP, together with S7 communication and routing.
How is the module powered?
It uses 5 V DC from the S7-400 backplane, with a typical current consumption of 1.4 A.
