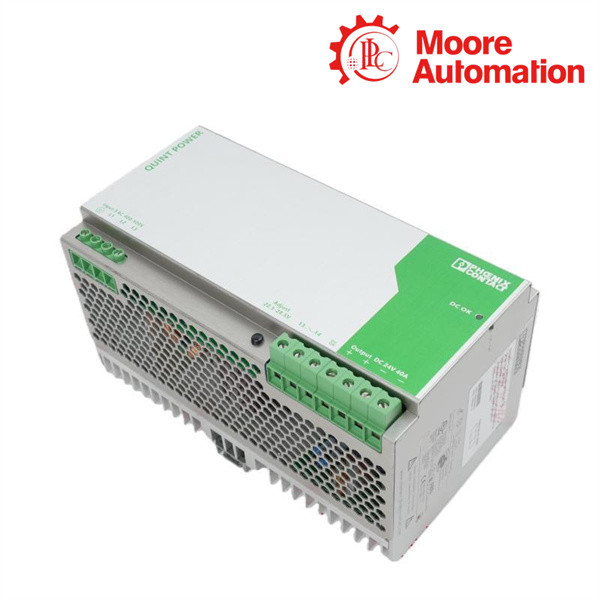

QUINT-PS-3X400-500AC/24DC/40
Three-phase, primary-switched DIN rail power supply delivering 24 V DC at 40 A for plant engineering and special-purpose machinery.
Order number 2938646 combines a wide AC/DC input, POWER BOOST reserve, adjustable output voltage and two DC OK interfaces for remote diagnostics.
High-current 24 V DC supply for industrial loads
QUINT-PS-3X400-500AC/24DC/40 converts a three-phase industrial supply into regulated 24 V DC. Its POWER BOOST reserve supports loads with demanding starting current, while the output can be adjusted from 22.5 V to 28.5 V.
The device accepts all three phases from 320 V AC to 575 V AC and can also operate from 450 V DC to 800 V DC. A DC OK active output and floating relay contact allow operating status to be transferred to a control or monitoring circuit.
POWER BOOST
45 A is available continuously from −25°C to +40°C.
Remote diagnostics
Active DC OK output and floating relay contact report output status.
Flexible operation
Series and parallel connection support redundancy or increased capacity.
Input protection
Transient surge protection is provided by a varistor.
Output protection
Active current limiting and output overvoltage protection are integrated.
Industrial enclosure
Metal AluNox housing with IP20 protection for control-cabinet installation.
Official technical data
Dimensions and functional connections
Industrial 24 V DC power distribution
Plant engineering
High-current 24 V DC supply for industrial control cabinets.
Special-purpose machinery
Reliable startup of loads with high inrush current using POWER BOOST.
Automation systems
Power for controllers, I/O, relays and connected control equipment within the rated output.
Redundant power systems
Parallel operation for redundancy or increased output capacity.
Discontinuation and replacement
QUINT-PS-3X400-500AC/24DC/40 purchasing questions
What output does Phoenix Contact 2938646 provide?
It provides 24 V DC at 40 A with 960 W nominal output power. The voltage is adjustable from 22.5 V to 28.5 V.
How much POWER BOOST current is available?
The power supply provides 45 A permanently from −25°C to +40°C.
Can order number 2938646 operate from a DC input?
Yes. The official DC input range is 450 V DC to 800 V DC.
Which product does Phoenix Contact specify for new systems?
Phoenix Contact identifies order number 2904623, QUINT4-PS/3AC/24DC/40, for new systems.
Can 2904623 directly replace 2938646 without changes?
No direct drop-in equivalence is stated. The housing width, electrical ranges, connection arrangement, diagnostic functions and configuration options must be checked before replacement.
