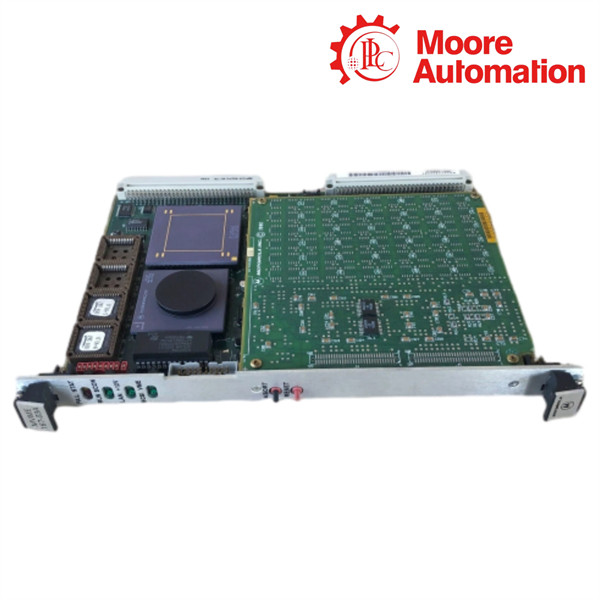

Motorola MVME167-002B VMEbus Single Board Computer
The Motorola MVME167-002B is a 6U VMEbus single board computer built around the MC68040.
01 / PRODUCT PROFILE
Product Profile: Motorola MVME167-002B
The Motorola MVME167-002B is a 6U VMEbus single board computer built around the MC68040. This exact designation identifies the 25 MHz processor configuration with 8MB parity-protected DRAM. The board combines processor, memory, VMEbus control and standard peripheral interfaces on one module for embedded VME systems.
The full MVME167-002B designation must be retained when matching processor speed, memory protection and installed interface details.
Exact configuration
MC68040 · 25 MHz
8MB parity-protected DRAM
VMEbus Single Board Computer
02 / TECHNICAL DATA
Technical Data for MVME167-002B
| Product type | VMEbus Single Board Computer |
|---|---|
| Processor | MC68040 at 25 MHz |
| Memory | 8MB parity-protected DRAM |
| Form factor | 6U VMEbus board |
Detailed technical specifications
| VMEbus transfers | A16/A24/A32; D8/D16/D32/D64; block transfer support |
|---|---|
| Static RAM | 128KB, with optional battery backup |
| Serial communication | Four EIA-232-D serial ports |
| Ethernet | On-board Ethernet interface |
| SCSI | On-board SCSI interface |
| Parallel interface | Centronics-compatible parallel port |
| Operating temperature | 0°C to 55°C with forced-air cooling |
| Storage temperature | -40°C to 85°C |
| Relative humidity | 5% to 90%, non-condensing |
03 / OPERATING FUNCTIONS
Operating Functions for MVME167-002B
Bus Operation
MVME167-002B connects its local processor and interface resources to the VMEbus transfer architecture.
Integrated Interfaces
MVME167-002B provides the communication and expansion interfaces listed in its exact technical configuration.
04 / INSTALLATION HIGHLIGHTS
Installation Highlights for MVME167-002B
Chassis Preparation
Install the MVME167-002B in a compatible VME chassis with the specified forced-air cooling. Before insertion, verify the complete board suffix, backplane slot arrangement, interface cabling and jumper settings against the system documentation.
Order-Code Check
Match the complete MVME167-002B designation and board label before fitting cables or expansion modules.
Cooling and Cabling
Maintain the documented airflow and route interface cables without obstructing the board or adjacent slots for MVME167-002B.
05 / MODEL FAQ
Model FAQ for MVME167-002B
What processor and memory configuration does MVME167-002B use?
MVME167-002B uses the 25 MHz MC68040 with 8MB parity-protected DRAM.
What type of module is MVME167-002B?
MVME167-002B is a Motorola vmebus single board computer designed for a 6U VME system.
Which communication interfaces are documented for MVME167-002B?
MVME167-002B includes Ethernet, SCSI, four EIA-232-D serial ports and a Centronics-compatible parallel interface.
What expansion resources are provided by MVME167-002B?
MVME167-002B provides VMEbus resources and the board-level interfaces documented for the exact configuration.
What information should be checked before ordering MVME167-002B?
Before ordering MVME167-002B, verify the complete model suffix, board label, hardware revision, memory configuration and required interfaces.
