Copy| Product Name | Motorola MVME147-012 / MVME147-012A VMEbus Processor Module |
| Item NO. | 2898101 |
| Weight | 0.1 kg = 0.2205 lb = 3.5274 oz |
| Category | MOTOROLA |
| Brand | MOTOROLA |
| Creation Time | 2026-08-20 |
Motorola VME Embedded Controller
Base and A-revision order designations for the 25 MHz MVME147 configuration with 8MB parity DRAM, Ethernet and SCSI.
Product Overview
Base and A-revision order designations for the 25 MHz MVME147 configuration with 8MB parity DRAM, Ethernet and SCSI.
The specification below follows the exact Motorola order designation and excludes family options that are not documented for this configuration.
Product Specifications
| Product family | MVME147 |
|---|---|
| Processor | MC68030 with MC68882 FPU |
| Processor clock | 25 MHz |
| DRAM | 8MB DRAM with parity |
| Local SRAM / NVRAM | 4K × 8 battery-backed CMOS RAM |
| Integrated I/O configuration | Ethernet and SCSI |
| MVME147-012 | 25 MHz, 8MB parity DRAM, Ethernet |
| MVME147-012A | 25 MHz, 8MB, Ethernet and SCSI in the A-revision ordering table |
| Shared configuration | MC68030/MC68882 architecture, four serial ports and one parallel port |
| Processor family | MC68030 with MC68882 floating-point coprocessor |
| Form factor | Double-high VMEbus module |
| Firmware | 147Bug debugger/diagnostics in EPROM |
| Local nonvolatile memory | 4K × 8 CMOS RAM with battery backup |
| Timers | Two 16-bit tick timers and watchdog timer |
| Serial interfaces | Four EIA-232-D serial ports |
| Parallel interface | 8-bit Centronics-compatible parallel port |
| Storage interface | SCSI interface with DMA |
| VMEbus functions | System controller, master, interrupter and requester |
| Operating temperature | 0 to 55 °C incoming air with forced-air cooling |
Key Features
The MVME147-012 / MVME147-012A configuration is defined by its processor clock, DRAM capacity, parity implementation and fitted SCSI/Ethernet interfaces. These order-code distinctions are preserved in the specification table.
MVME147-012: 25 MHz, 8MB parity DRAM, Ethernet. MVME147-012A: 25 MHz, 8MB, Ethernet and SCSI in the A-revision ordering table. Shared configuration: MC68030/MC68882 architecture, four serial ports and one parallel port.
System Integration

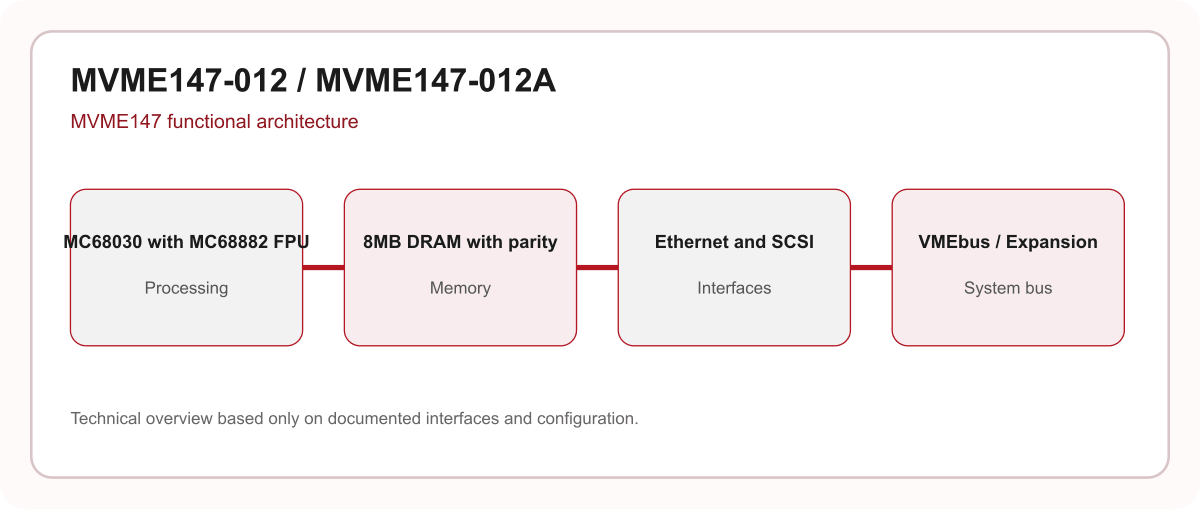

MVME147-012 / MVME147-012A integrates processor, local memory, serial/parallel I/O and VMEbus resources. Ethernet and SCSI availability follows the exact model designation rather than the wider family capability.
Match the complete MVME147-012 / MVME147-012A designation before installation. Processor, memory, Ethernet, SCSI and VMEbus options vary by order code.
Frequently Asked Questions
MVME147-012 and MVME147-012A uses the documented MC68030 with MC68882 FPU processor configuration at 25 MHz.
MVME147-012 and MVME147-012A provides 8MB DRAM with parity.
MVME147-012 and MVME147-012A is documented with Ethernet and SCSI.
MVME147-012 and MVME147-012A is a MVME147 embedded controller with the VMEbus and IndustryPack expansion resources stated in the official Motorola documentation.
MVME147-012 and MVME147-012A should be checked against the chassis power, airflow, jumper, serial-interface and transition-module requirements documented for this exact configuration.
