Copy| Product Name | Motorola MVME147-010 / MVME147-010A VMEbus Processor Module |
| Item NO. | 2898099 |
| Weight | 0.1 kg = 0.2205 lb = 3.5274 oz |
| Category | MOTOROLA |
| Brand | MOTOROLA |
| Creation Time | 2026-08-20 |
Motorola VME Embedded Controller
Two documented order-designation revisions of the 16 MHz MVME147 configuration with 4MB non-parity DRAM and no Ethernet.
Product Overview
Two documented order-designation revisions of the 16 MHz MVME147 configuration with 4MB non-parity DRAM and no Ethernet.
The specification below follows the exact Motorola order designation and excludes family options that are not documented for this configuration.
Product Specifications
| Product family | MVME147 |
|---|---|
| Processor | MC68030 with MC68882 FPU |
| Processor clock | 16 MHz |
| DRAM | 4MB DRAM without parity |
| Local SRAM / NVRAM | 4K × 8 battery-backed CMOS RAM |
| Integrated I/O configuration | SCSI; no Ethernet |
| MVME147-010 | 16 MHz, 4MB DRAM without parity, no Ethernet |
| MVME147-010A | 16 MHz, 4MB DRAM without parity; A revision ordering entry explicitly includes SCSI |
| Shared configuration | MC68030/MC68882 architecture, four serial ports and one parallel port |
| Processor family | MC68030 with MC68882 floating-point coprocessor |
| Form factor | Double-high VMEbus module |
| Firmware | 147Bug debugger/diagnostics in EPROM |
| Local nonvolatile memory | 4K × 8 CMOS RAM with battery backup |
| Timers | Two 16-bit tick timers and watchdog timer |
| Serial interfaces | Four EIA-232-D serial ports |
| Parallel interface | 8-bit Centronics-compatible parallel port |
| Storage interface | SCSI interface with DMA |
| VMEbus functions | System controller, master, interrupter and requester |
| Operating temperature | 0 to 55 °C incoming air with forced-air cooling |
Key Features
The MVME147-010 / MVME147-010A configuration is defined by its processor clock, DRAM capacity, parity implementation and fitted SCSI/Ethernet interfaces. These order-code distinctions are preserved in the specification table.
MVME147-010: 16 MHz, 4MB DRAM without parity, no Ethernet. MVME147-010A: 16 MHz, 4MB DRAM without parity; A revision ordering entry explicitly includes SCSI. Shared configuration: MC68030/MC68882 architecture, four serial ports and one parallel port.
System Integration

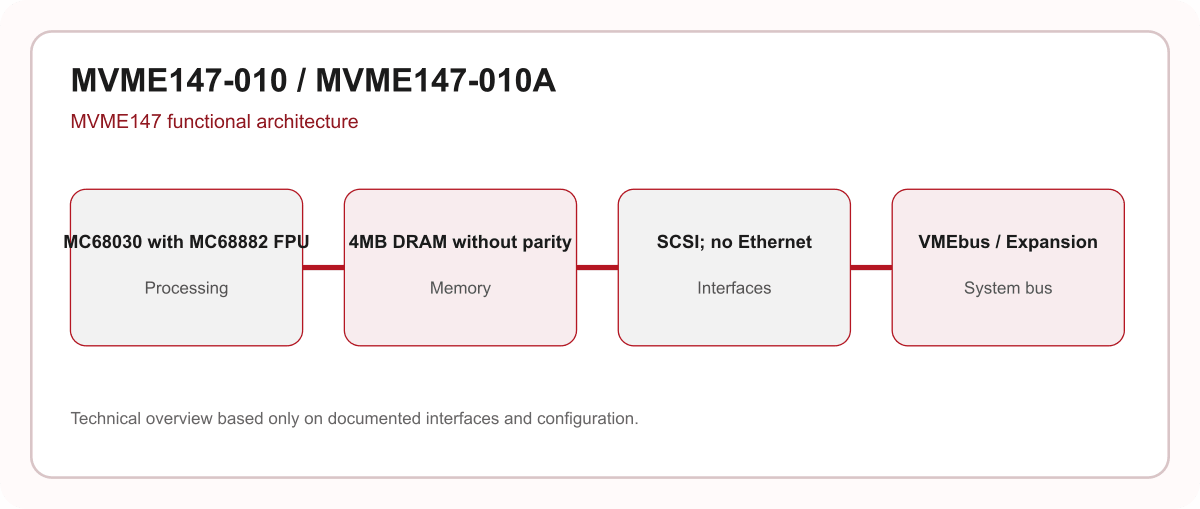

MVME147-010 / MVME147-010A integrates processor, local memory, serial/parallel I/O and VMEbus resources. Ethernet and SCSI availability follows the exact model designation rather than the wider family capability.
Match the complete MVME147-010 / MVME147-010A designation before installation. Processor, memory, Ethernet, SCSI and VMEbus options vary by order code.
Frequently Asked Questions
MVME147-010 and MVME147-010A uses the documented MC68030 with MC68882 FPU processor configuration at 16 MHz.
MVME147-010 and MVME147-010A provides 4MB DRAM without parity.
MVME147-010 and MVME147-010A is documented with SCSI; no Ethernet.
MVME147-010 and MVME147-010A is a MVME147 embedded controller with the VMEbus and IndustryPack expansion resources stated in the official Motorola documentation.
MVME147-010 and MVME147-010A should be checked against the chassis power, airflow, jumper, serial-interface and transition-module requirements documented for this exact configuration.
