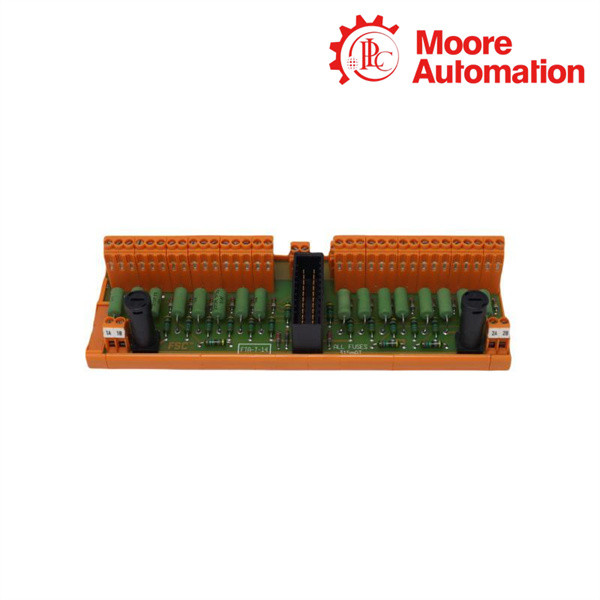

Honeywell FTA-T-14 Analog Input Module Item NO.: 2807251

The FTA-T-14 module has the following specifications:
Manufacturer: Honeywell
Product Numbers: FTA-T-14
Product Type: Analog Input Module
Country of origin: USA
General
 Approvals:CE;
                  UL, FM, TÜV approvals pending
Input
Number of input channels: 16 (2 groups of 8 with common 0 V)
 Power requirements: 30 Vdc external    3 mA (without input loop loads)
 Input current: 0 to 25 mA
 Input resistance: 250 Ohm (± 1%)
Output
To passive transmitters (Vext):
- output resistance: 270 Ohm (土5%)
- igniting current per channel: <120mAat30Vdc
To 10105/2/1 module:
- output voltage: 0 to4 Vdc
Fuses
Rating: 315 mAT (slow-acting)
Dimensions: 5x20mm(0.20x0.79in)

The field termination assembly module FTA-T-14 is the interface between field components (sensors, etc.) and

the fail-safe high density analog input module 10105/2/1 in the FSC system. It can be used for interfacing signals

from Class I, Division 2 Hazardous Locations.
 The FTA-T-14 module has sixteen analog input channels which may be used for both safety-related and

non-safety-related applications. These sixteen channels (separated into two groups of eight channels with common

0 V) are connected to the FTA-T-14 module via a system interconnection cable (SIC), which is plugged into the SIC
connector on the FTA module.
The FTA module has a universal snap-in facility for standard DIN EN rails, and screw terminals for connection of power

supply, ground and field wiring.
