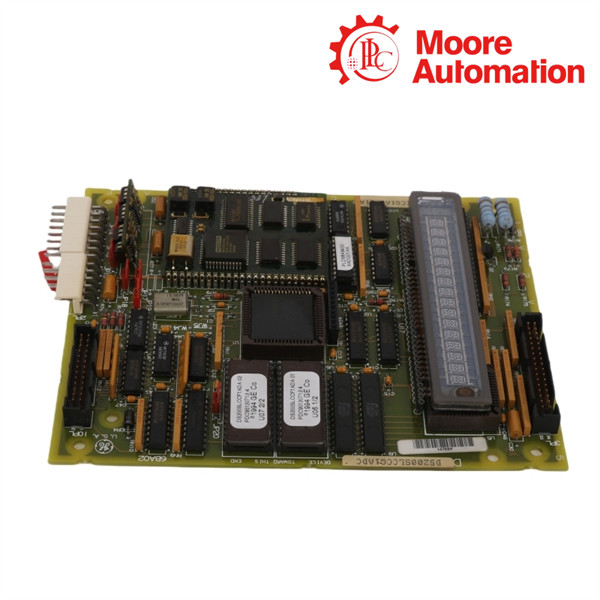

GE DS200SLCCG1A LAN Communications Card

GE DS200SLCCG1A LAN Communications Card Item NO.: 2906987

Write a Review
US$ 1.00
Quantity
Stock ( 28 )
Add to Cart
Inquiry

Adding to cart succeed

0 item(s) in cart, Subtotal: US$ 0

Continue Shopping View My Cart

Copy and share this link on social network or send it to your friends

Copy
Request Price & AvailabilitySend the part number and quantity. Our team will confirm stock, condition, lead time and the best quotation.
  • MOQ: 1 piece
  • International shipping
  • 1-year warranty on eligible items
  • Fast response during business hours
Product Name GE DS200SLCCG1A LAN Communications Card
Item NO. 2906987
Weight 0.1 kg = 0.2205 lb = 3.5274 oz
Category GE
Brand GE
Creation Time 2026-09-10

GE DS200SLCCG1A LAN Communications Card
Drive LAN Communications

GE DS200SLCCG1A LAN Communications Card

A G1 LAN communications card family providing DLAN and ARCNET circuitry for compatible GE drive and exciter control hardware.

01

Product Overview

GE DS200SLCCG1A identifies the G1 LAN Communications Card family described by GEI-100162. The card provides the drive with communications processing and includes the circuitry required for both DLAN and ARCNET network arrangements.

A dedicated LAN Control Processor handles communications activity, while dual-ported memory supports data exchange with the associated drive-control board. Isolated and non-isolated communication circuits are both provided.

The DS200SLCCG1A family mounts on four standoffs on the associated SDCC board, and the optional Programmer module connects at KPPL. Complete suffix characters still need to match the installed hardware.

02

Technical Specifications

Specification Technical Data
Brand GE
Model DS200SLCCG1A
Product Type LAN communications card family
Country of Origin United States
Functional Acronym SLCC
Board Group G1
Reference Manual GEI-100162
Supported Network Circuitry DLAN and ARCNET
Communications Processor LAN Control Processor (LCP)
Shared Data Memory Dual-ported RAM
Communication Circuits Isolated and non-isolated
Programmer Interface KPPL
Mechanical Mounting Four standoffs on the associated SDCC board
Configuration Hardware JP-type movable jumpers and WJ wire jumpers
03

Communication and Connectivity

DLAN and ARCNET support in the G1 family

The G1 SLCC hardware includes both DLAN and ARCNET communication circuitry. The LCP manages network activity, and dual-ported RAM exchanges data with the connected drive-control board.

  • DLAN and ARCNET circuitry belong to the G1 family.
  • Both isolated and non-isolated communication paths are available.
  • The associated drive-control board supplies the control context.
04

Installation and Integration

Standoff mounting and Programmer connection

The card mounts on four standoffs over the associated SDCC board. If a Programmer module is installed, its keypad and display connect through KPPL and must be refitted in the original orientation.

  • De-energize the drive before removing cables or boards.
  • Record all jumper positions before replacement.
  • Match every suffix character on the replacement board.
05

Technical Questions

What communication role does DS200SLCCG1A perform?

It provides LAN communications processing for compatible GE drive and exciter control hardware.

Which network circuits are included in the DS200SLCCG1A G1 family?

The G1 family includes both DLAN and ARCNET circuitry.

How is DS200SLCCG1A mounted?

It mounts on four standoffs on the associated SDCC board.

Where does the Programmer module connect on DS200SLCCG1A?

It connects through the KPPL interface.

Can a DS200SLCCG1ACC page prove that every DS200SLCCG1A revision is interchangeable?

No. The additional suffix characters identify a complete revision and must be compared with the installed card.
