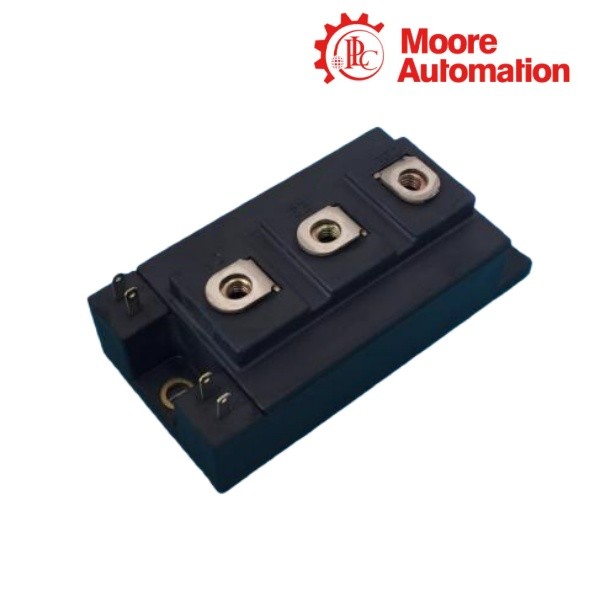

FUJI 2MBI100NC-120 IGBT Module Item NO.: 2833082

Manager: Leonia

E-mail: sales@mvme.cn

Phone:+8618030175807(whatsapp)

Product Model:2MBI100NC-120

Product Parameters:IGBT Module

Manufacturer:FUJI

Collector-Emitter Voltage (VCES): 1200 V

Gate-Emitter Voltage (VGES): ±20 V

Continuous Collector Current (IC): 100 A

Pulse Collector Current (1ms): 200 A

Collector-Emitter Saturation Voltage (VCE(sat)): Typ 2.2 V / Max 2.7 V @ IC=100 A

Power Dissipation (PC max): 780 W

Operating Junction Temperature (Tj max): 150 °C

Storage Temperature (Tstg): -40 to +125 °C

Isolation Voltage (Vis, 1 min): 2500 Vac

The Fuji Electric 2MBI100NC-120 is a 1200 V, 100 A insulated gate bipolar transistor (IGBT) power module from

Fuji Electric’s N‑series of semiconductor products. This module incorporates two IGBT devices with built‑in freewheeling

diodes arranged in a half‑bridge configuration, providing a compact and robust solution for high‑power switching

applications. The device features a square Reverse Bias Safe Operating Area (RBSOA) for enhanced short‑circuit

tolerance, low saturation voltage to reduce conduction losses, improved fast recovery diode (FWD) characteristics,

minimized internal stray inductance, and an overcurrent limiting function up to 4–5 × rated current, supporting reliable

operation under transient load conditions typical of industrial environments.
