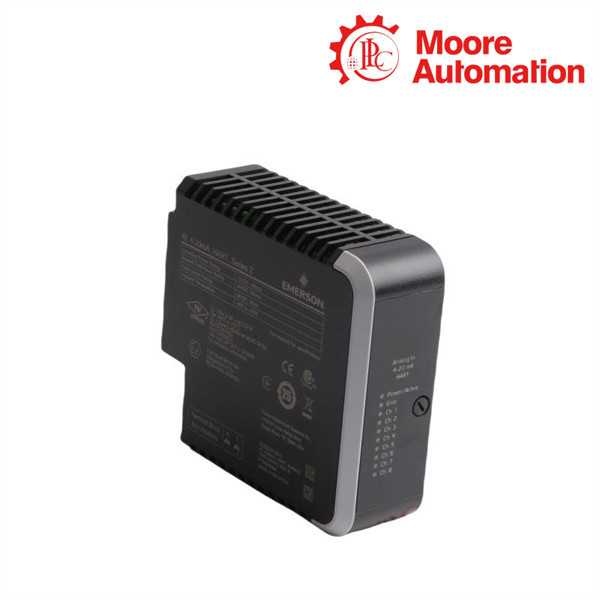

Emerson KJ3222X1-BA2 / KJ3222X1-BA3 AI 8 CH 4-20mA Hart Card Series 2 Item NO.: 2821469

The Emerson KJ3222X1-BA2 / KJ3222X1-BA3 AI 8-Channel 4-20mA HART Card Series 2 is a high-performance analog input

module designed for industrial automation and process control systems. It supports 8 channels of 4-20mA HART signals,

providing precise and reliable measurement input for critical control applications. The module operates with a local bus power of

12 VDC at 150 mA and bussed field power of 24 VDC at 300 mA, with each field circuit handling 24 VDC at 30 mA per channel.

Engineered for demanding industrial environments, the card functions reliably within an ambient temperature range of –40 °C to

+70 °C, and is resistant to shock (10 g half-sine wave, 11 ms), vibration (1 mm peak-to-peak from 2 to 13.2 Hz; 0.7 g from 13.2

to 150 Hz), and airborne contaminants per ISA-S71.04 Class G3. It also supports 5–95% non-condensing relative humidity and

features a terminal block key position of A1, ensuring secure and easy integration into Emerson Series 2 control systems.

Manufacturer: Emerson
Product Numbers: KJ3222X1-BA2 / KJ3222X1-BA3
Product Type: AI 8 CH 4-20mA Hart Card Series 2
Place of 0rigin: USA
Condition: 100% Original
Warranty: 1 Year
Power Specifications
Local Bus Power: 12 VDC at 150 mA
Bussed Field Power: 24 VDC at 300 mA
Field Circuit: 24 VDC at 30 mA/Ch.
Environmental Specifications
Ambient Temperature: -40 °C to +70 °C
Shock: 10 g half-sine wave for 11 ms
Vibration: 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz
Airborne Contaminants: ISA-S71.04 –1985 Airborne Contaminants Class G3
Relative Humidity: 5 to 95% Non-Condensing
Terminal block key position: A1
