Eddy-current field generation
The 5.26 mm tip responds to distance from the conductive target without mechanical contact, turning target motion into a changing probe response.
Product identity330905
Bently Nevada · 3300 XL NSv proximity system
Bently Nevada 330905-00-25-05-02-IN | 3300 XL NSv M10 × 1 Proximity Probe
ThreadM10 × 1
Case250 mm
Official product identity and signal path
Model Profile

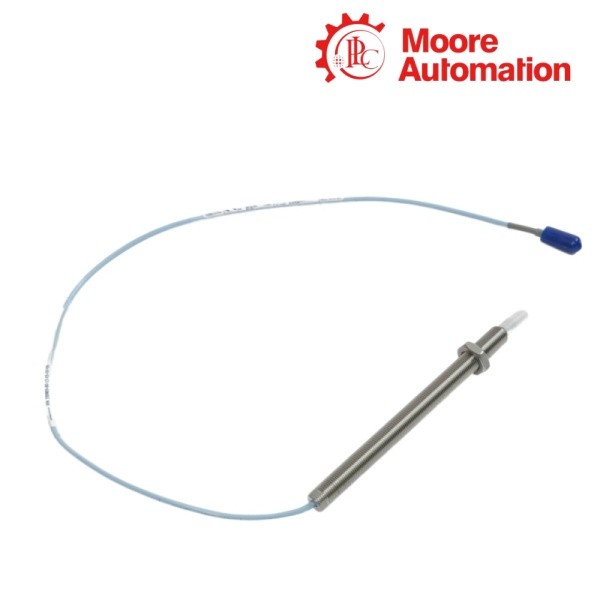

Bently Nevada 330905-00-25-05-02-IN is an unarmored M10 × 1 proximity probe in the 3300 XL NSv system. Its 5.26 mm tip establishes a non-contact eddy-current field at the conductive target and carries the gap-dependent response through the integral coaxial cable.
Mechanical fields in Bently Nevada 330905-00-25-05-02-IN select no unthreaded section and a 250 mm overall case. The long threaded body defines how far the probe can reach through the prepared mounting structure, while the half-metre cable exits the case and ends at the standard miniature coaxial ClickLoc connector.
For a complete NSv measurement chain, Bently Nevada 330905-00-25-05-02-IN connects through the matching extension cable to a 3300 XL NSv Proximitor Sensor. The conditioner supplies probe excitation and converts the returned response into the proportional voltage delivered to the monitor; IN identifies the India hazardous-area approval option.
Verified configuration and operating values
Technical Parameters
Technical item330905-00-25-05-02-IN
BrandBently Nevada
Product Type3300 XL NSv proximity probe
Brand CountryUnited States
System family3300 XL NSv
Base code 330905M10 × 1 thread; without armor
AA 00 — unthreaded length0 mm
BB 25 — overall case length250 mm
CC 05 — total probe length0.5 m
DD 02 — connector and cableStandard miniature coaxial ClickLoc; standard cable
EE IN — approval optionIndia hazardous-area approval option
Probe tip diameter5.26 mm
Linear range1.5 mm (60 mil)
Recommended gap1.0 mm (40 mil)
Scale factor7.87 V/mm (200 mV/mil), +12.5%/−20%
Frequency response0 to 10 kHz, +0/−3 dB typical
Probe case materialAISI 304 stainless steel
Probe tip materialPolyphenylene sulfide
Probe temperature−52 to +177 °C
Cable construction75 Ω coaxial, FEP insulated
Minimum cable bend radius25.4 mm
Maximum M10 thread engagement15 mm
System supply−17.5 to −26 Vdc; 12 mA maximum
Field wiringThree-conductor shielded triad, up to 305 m
NSv sensing stage
Product Functions
Bently Nevada 330905-00-25-05-02-IN performs the non-contact sensing function at the machine while the matched Proximitor Sensor performs electronic conditioning.
Static gap and vibration response
Steady shaft position and dynamic movement modulate the same field response, so the downstream conditioner can represent both gap and vibration at its output.
Signal transfer through the lead
The half-metre integral cable carries the response to the ClickLoc connection, which hands it to the matched NSv extension cable and Proximitor Sensor.
Long-case mounting sequence
Installation Highlights
Install Bently Nevada 330905-00-25-05-02-IN by controlling the 250 mm threaded case position, working gap and cable route as separate steps.
Secure the long body without changing the calibrated cable path
The M10 × 1 case establishes probe reach and alignment, while the 0.5 m lead and matched extension cable establish the electrical path to the Proximitor Sensor.
Prepare and support the mounting point
Provide an M10 × 1 mounting arrangement that keeps the long 250 mm case aligned with the target and respects the stated thread-engagement boundary.
Set and lock the probe gap
Position the active tip at the required working gap, verify that it faces the target squarely, then secure the threaded body without shifting the set position.
Route the integral lead
Maintain the minimum bend radius, protect the cable from contact with moving parts and join the standard ClickLoc connector to the correct NSv extension cable.
Exact-model product questions
Product Help
What prevents Bently Nevada 330905-00-25-05-02-IN from being screwed too deeply into a long mounting boss?
Bently Nevada 330905-00-25-05-02-IN has a 250 mm M10 × 1 threaded case but a 15 mm maximum thread-engagement boundary. Check the boss geometry and locking arrangement so the long case reaches the target without exceeding that engagement limit.
Why can Bently Nevada 330905-00-25-05-02-IN be difficult to route in a compact enclosure?
Bently Nevada 330905-00-25-05-02-IN combines a long 250 mm body with a 0.5 m unarmored lead and a 25.4 mm minimum cable bend radius. Reserve space for both the probe body and the cable exit instead of forcing the lead into a sharp turn behind the connector.
What should be verified when Bently Nevada 330905-00-25-05-02-IN gives a signal but the scale is not credible?
For Bently Nevada 330905-00-25-05-02-IN, confirm that the 0.5 m probe is paired with the correct NSv extension cable and Proximitor Sensor, then verify the target gap and material. A complete connector path can still be electrically mismatched.
How should an intermittent ClickLoc connection on Bently Nevada 330905-00-25-05-02-IN be investigated?
Bently Nevada 330905-00-25-05-02-IN uses DD 02, a standard ClickLoc without a connector protector. Inspect the mating surfaces, cable strain and bend radius, and do not assume that the IN approval suffix adds mechanical protection to the connector.
Why is Bently Nevada 330905-00-25-05-02-IN not interchangeable with the same geometry ending in 00?
The IN ending on Bently Nevada 330905-00-25-05-02-IN identifies the India hazardous-area approval option. The geometry may match a 00 execution, but the compliance record does not; retain IN in the enquiry, label record and replacement order.
What installation issue can consume the usable range of Bently Nevada 330905-00-25-05-02-IN?
Bently Nevada 330905-00-25-05-02-IN has a 1.5 mm system linear range around the selected operating point. If the long threaded body shifts while being locked or the tip is not square to the target, the starting gap can move toward a range boundary before vibration is measured.
A direct enquiry route
Customer Support
Moore Automation
https://www.mvme.cn/Moore Automation provides a direct contact for technical product and purchasing enquiries. Customers can submit the exact model, quantity, destination and any available nameplate or drawing in one message.
The same enquiry record follows product clarification, quotation and logistics coordination. This gives technical and commercial questions a consistent reference without repeating or shortening the requested identifier.
Clear enquiriesModel, quantity and destination
Product clarificationSuffixes, drawings and installed details
Coordinated responseTechnical, commercial and shipment questions
