330880PROXPAC XL assembly

Integrated proximity transducer

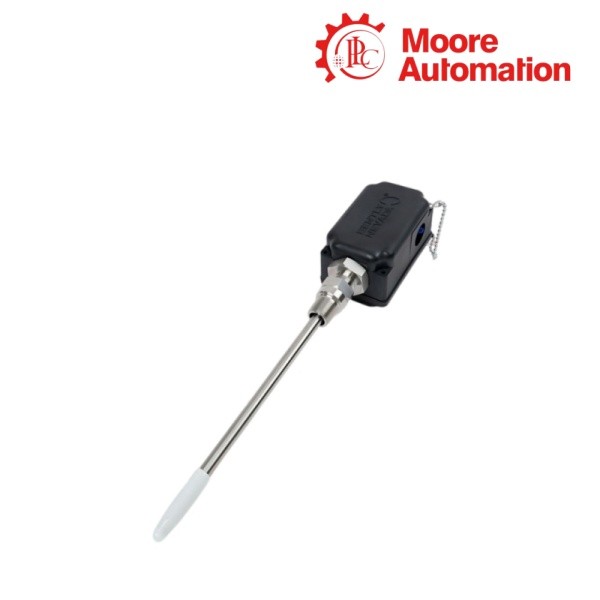

Bently Nevada 330880-16-00-021-03-02 | 3300 PROXPAC XL 8 mm Proximity Transducer Assembly

Name: Bently Nevada 330880-16-00-021-03-02 | 3300 PROXPAC XL 8 mm Proximity Transducer Assembly
Brand: Bently Nevada
SKU: 2926061
Price: 1 USD
Availability: InStock

PRODUCT RECORD

Product Summary

The Bently Nevada 330880-16-00-021-03-02 is a 3300 PROXPAC XL proximity transducer assembly that integrates the probe, Proximitor Sensor and protected housing into one field-mounted unit. It is not a loose probe-and-cable record.

The order string on Bently Nevada 330880-16-00-021-03-02 selects a 3300 XL 8 mm probe without additional standoff adapter, a 21 mm probe penetration, E03 fittings and the 3/4-14 NPT mounting thread. The housing carries the sensor connector and cable-entry hardware at the machine boundary.

At the signal level, Bently Nevada 330880-16-00-021-03-02 provides the 8 mm system output to the monitoring circuit. The probe gap, mounting thread and fitting layout must remain compatible with the machine case and the connected monitor.

330880 PROXPAC XL proximity transducer assembly drawing

ORDER AND PERFORMANCE DATA

Specification Details

The 330880 order string identifies the 8 mm probe, no standoff adapter, 21 mm penetration, E03 conduit fitting and 3/4-14 NPT mounting thread.

Brand

Bently Nevada

Model

330880-16-00-021-03-02

Product name

3300 PROXPAC XL 8 mm proximity transducer assembly

Country

USA

System family

3300 PROXPAC XL / 3300 XL 8 mm system

Order structure

330880-AA-BB-CCC-DD-EE

Probe option A

16; 3300 XL 8 mm probe without approvals

Standoff adapter B

00; no standoff adapter

Probe penetration C

021; 21 mm nominal penetration

Fitting option D

03; one 3/4-14 NPT fitting, reducer, two plugs and cable seal grip

Mounting thread E

02; 3/4-14 NPT

Linear range

2.0 mm (80 mils)

Average scale factor

7.87 V/mm (200 mV/mil), ±5%

Supply requirement

-17.5 to -26 Vdc; 12 mA maximum

Frequency response

0 to 10 kHz (+0/-3 dB)

Operating temperature

-34°C to +100°C

Storage temperature

-51°C to +105°C

Housing material

Conductive glass-filled PPS

Protection rating

IP66 / NEMA 4X

CORE MODULE

Product Functions

Bently Nevada 330880-16-00-021-03-02 combines the 8 mm eddy-current sensing path and Proximitor conditioning inside a PROXPAC housing.

Integrated sensing

The 330880-16-00-021-03-02 assembly places the probe and Proximitor Sensor in one protected field unit rather than requiring a separate extension cable.

Conditioned output

The 8 mm probe in 330880-16-00-021-03-02 converts the target gap into the conditioned displacement output used by the monitoring circuit.

Fitting-controlled entry

The E03 field on 330880-16-00-021-03-02 controls the conduit and cable-seal arrangement around the integrated assembly.

CORE MODULE

System Integration

The housing, probe penetration and 3/4-14 NPT mounting thread determine how Bently Nevada 330880-16-00-021-03-02 sits between the machine case and the monitoring wiring.

Machine boundary

The 330880-16-00-021-03-02 housing mounts at the machine boundary and keeps the sensing tip aligned with the target.

Monitor connection

The conditioned output from 330880-16-00-021-03-02 leaves through the specified system connector path toward the monitoring input.

Environmental enclosure

The conductive PPS housing and IP66/NEMA 4X rating on 330880-16-00-021-03-02 define the enclosure boundary around the integrated sensor.

CUSTOMER QUESTIONS

Questions & Answers

Q01

What does 330880-16-00-021-03-02 include?

The Bently Nevada 330880-16-00-021-03-02 is a PROXPAC XL 8 mm integrated proximity transducer assembly with the probe, Proximitor Sensor housing and listed fitting options.

Q02

Why is the 021 value important on Bently Nevada 330880-16-00-021-03-02?

The 021 field sets the nominal 21 mm probe penetration for Bently Nevada 330880-16-00-021-03-02; it is not a cable length.

Q03

What does D03 do on Bently Nevada 330880-16-00-021-03-02?

D03 on Bently Nevada 330880-16-00-021-03-02 specifies the fitting, reducer, plugs and cable-seal grip arrangement for the enclosure entry.

Q04

Can Bently Nevada 330880-16-00-021-03-02 be treated as a bare 8 mm probe?

No. Bently Nevada 330880-16-00-021-03-02 is an integrated PROXPAC assembly with its own housing and Proximitor Sensor interface.

Q05

What output range is associated with Bently Nevada 330880-16-00-021-03-02?

The 8 mm system used by Bently Nevada 330880-16-00-021-03-02 has a 2.0 mm linear range and an average scale factor of 7.87 V/mm.

Q06

What environmental boundary should be checked for Bently Nevada 330880-16-00-021-03-02?

Check the IP66/NEMA 4X housing boundary and -34°C to +100°C operating range for Bently Nevada 330880-16-00-021-03-02.
