Route before coupling
Lay out the 4.0 m path for 330730-040-12-00 before tightening either connector so the cable is not used to pull a probe or sensor into position.

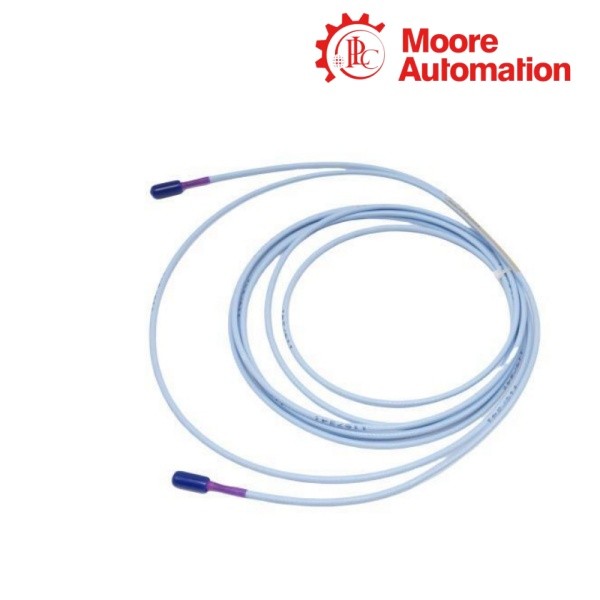

Bently Nevada 330730-040-12-00 3300 XL 11 mm extension cable
Product Profile
Bently Nevada 330730-040-12-00 is a 4.0 m extension cable in the 3300 XL 11 mm Proximity Transducer System. Installed between the probe lead and the matching Proximitor Sensor, it continues the probe response through the calibrated measurement chain and contributes to the total system length selected for the sensor.
At the probe-side ClickLoc joint, 330730-040-12-00 receives the gap-dependent response and carries it through its 75 ohm triaxial conductors to the sensor-side connector. The extension cable transfers this response without converting it; conversion to the monitoring voltage occurs in the connected Proximitor Sensor.
Specification Details
| Technical Item | 330730-040-12-00 |
|---|---|
| Brand | Bently Nevada |
| Product Type | 3300 XL 11 mm extension cable |
| Product System | 3300 XL 11 mm Proximity Transducer System |
| System Components | Probe, extension cable, and Proximitor Sensor |
| Extension Length | 4.0 m |
| Approximate Length | 13.1 ft |
| Cable Construction | FluidLoc cable |
| Cable Armor | Not included |
| Connector Protection | Included |
| Connection Format | Miniature coaxial ClickLoc connectors |
| Electrical Construction | 75 ohm triaxial, FEP-insulated cable |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Typical Cable Weight | 45 g/m (0.5 oz/ft) |
| System-Length Rule | Probe plus extension cable must equal the Proximitor Sensor total length |
| Agency Approval Option | 00 - not required |
Installation Highlights — FluidLoc Cable Route
The installation of 330730-040-12-00 is governed by the four-metre route and the protected couplings at both ends.
Keep the joint accessible
The connector protector on 330730-040-12-00 encloses the ClickLoc joint after mating; leave enough access to seat and inspect that protector.
Protect cable curvature
Support 330730-040-12-00 along the route and avoid sharp bends at the connector transitions where repeated cable load would be concentrated.
System Integration — Eleven-Millimetre Signal Chain
Within a complete measurement chain, 330730-040-12-00 links only the 3300 XL 11 mm probe side to the corresponding sensor side.
Probe-side input
The response from the 11 mm probe enters 330730-040-12-00 through the first ClickLoc coupling.
Cable transfer
The triaxial conductors in 330730-040-12-00 carry the probe response through the four-metre intermediate section.
Sensor-side output
The second coupling delivers the signal from 330730-040-12-00 to the matching Proximitor Sensor for conversion to a usable voltage output.
Product FAQs
Why can 330730-040-12-00 not be selected from length alone?
The complete 330730-040-12-00 code also fixes FluidLoc construction, connector protection, and approval option 00. A four-metre cable with another suffix can differ at the coupling or jacket even when its length matches.
Where should continuity troubleshooting begin on 330730-040-12-00?
For 330730-040-12-00, inspect both ClickLoc couplings and the protected connector transitions before disturbing the installed probe gap. A loose or contaminated joint can interrupt the signal path while the mechanical probe position remains unchanged.
Can 330730-040-12-00 be added to any 3300 XL probe cable?
No. 330730-040-12-00 belongs to the 3300 XL 11 mm system and must be combined with the documented probe and Proximitor Sensor length arrangement. Adding it to an unrelated calibrated chain changes the required electrical length.
What must remain accessible after 330730-040-12-00 is routed?
Both protected couplings of 330730-040-12-00 should remain service-accessible. Burying a connector behind rigid structure prevents confirmation that the ClickLoc joint and protector are fully seated.
Why should 330730-040-12-00 not carry mechanical pulling load?
The conductors and connector transitions of 330730-040-12-00 are signal components rather than pulling members. Route support should carry the cable weight so tension is not transferred into the probe or Proximitor Sensor connector.
Does approval code 00 on 330730-040-12-00 establish hazardous-area approval?
No. The final 00 in 330730-040-12-00 means an agency-approval option was not selected. A hazardous-area installation must use the exact approved system configuration required by the installation documentation.
