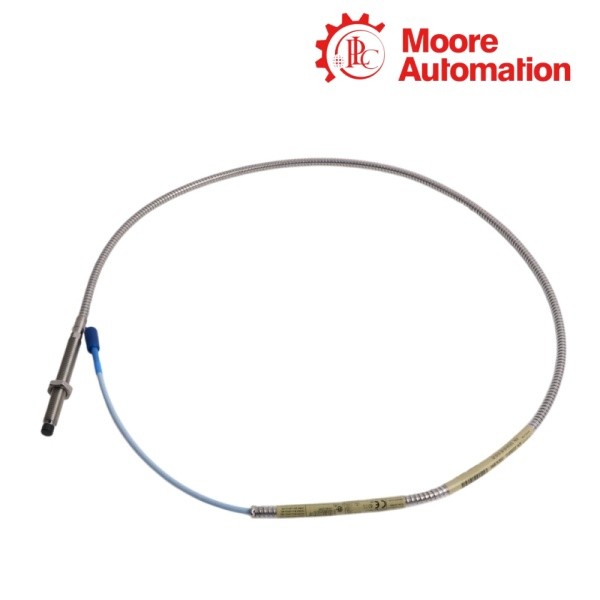

Name: Bently Nevada 330104-00-08-15-02-00 | 3300 XL 8 mm Metric Proximity Probe
Brand: Bently Nevada
SKU: 2925420
Price: 1 USD
Availability: InStock

Product Information

Bently Nevada 330104-00-08-15-02-00 is a metric 3300 XL 8 mm proximity probe used in a matched non-contact measurement system. The 330104 order family identifies the case geometry and cable execution, while the complete 02-00 ending keeps the connector and approval selection attached to the exact record.

At installation, the probe tip is set toward a conductive target and the cable is routed to the matching 3300 XL Proximitor sensor. Bently Nevada 330104-00-08-15-02-00 carries the probe response through the specified electrical path so the monitor receives both the static gap level and dynamic shaft motion.

The probe family uses the 8 mm target system’s 2.0 mm linear range and nominal 7.87 V/mm scale factor. These values describe the matched system condition; the bracket, gap, target material and field wiring still determine the actual installed result.

Official technical diagram for 330104-00-08-15-02-00

Technical Data

Technical Item	Value
Model	330104-00-08-15-02-00
Brand	Bently Nevada
Product origin	USA
Signal family	Eddy-current proximity measurement
System family	3300 XL / 3300 system
Connector family	Miniature coaxial ClickLoc where applicable
Product type	3300 XL 8 mm metric proximity probe
Case geometry	Suffix-controlled 8 mm metric construction
Lead / connector	Configured probe lead with miniature coaxial interface
Approval option	00 — no additional approval option in the supplied string
Typical linear range	2.0 mm (80 mil) for 3300 XL 8 mm systems
Nominal scale factor	7.87 V/mm (200 mV/mil) for 3300 XL 8 mm systems
Typical frequency response	0 to 10 kHz, +0/−3 dB typical for 3300 XL 8 mm systems
Probe target	Conductive target; published values use AISI 4140 steel
Mounting requirement	Rigid bracket or housing with controlled probe gap
Operating temperature	Depends on the selected Bently Nevada family and exact suffix
Electrical path	Probe / cable / Proximitor sensor matched as a complete system
Probe configuration	8 mm probe execution with suffix-controlled case, cable and approval groups
Target material	Conductive target; the 3300 XL calibration assumes the specified target material
Environmental boundary	Keep the probe, cable and Proximitor inside the selected system limits

Key Features

The configuration details of Bently Nevada 330104-00-08-15-02-00 define how the probe is mounted and connected in the 3300 XL chain.

Metric mounting body

The 330104 family is used with the metric mounting arrangement specified for the selected 8 mm probe execution.

Complete cable record

The cable and connector selection remain part of Bently Nevada 330104-00-08-15-02-00 rather than being inferred from a shorter model name.

ClickLoc interface

The miniature coaxial connection transfers the probe signal to the matching Proximitor sensor.

Installation Highlights

Correct installation of Bently Nevada 330104-00-08-15-02-00 depends on the mechanical gap, bracket engagement and protected cable path.

Gap adjustment

Set the probe near the center of the 3300 XL 8 mm linear span before final tightening.

Thread engagement

Keep the mounting engagement within the limit for the exact case and bracket combination.

Cable support

Support the lead and preserve its bend radius so vibration does not load the probe connector.

Product Questions

What system uses Bently Nevada 330104-00-08-15-02-00?

Bently Nevada 330104-00-08-15-02-00 is used in the matched 3300 XL 8 mm proximity probe and Proximitor system.

Why is the full Bently Nevada 330104-00-08-15-02-00 string important?

The complete Bently Nevada 330104-00-08-15-02-00 string records the case, cable, connector and approval selections.

How is Bently Nevada 330104-00-08-15-02-00 connected?

Bently Nevada 330104-00-08-15-02-00 connects through its selected probe lead and miniature coaxial interface to the matching Proximitor sensor.

What is the 8 mm linear span for Bently Nevada 330104-00-08-15-02-00?

The 3300 XL 8 mm family specifies a nominal 2.0 mm linear span for Bently Nevada 330104-00-08-15-02-00 under the stated target conditions.

Can the cable on Bently Nevada 330104-00-08-15-02-00 be changed freely?

No. Bently Nevada 330104-00-08-15-02-00 is part of a matched electrical length, so a cable change must be checked against the system configuration.

What should be checked if Bently Nevada 330104-00-08-15-02-00 reads incorrectly?

Check the target material, gap, bracket, cable connection and Proximitor pairing for Bently Nevada 330104-00-08-15-02-00.
