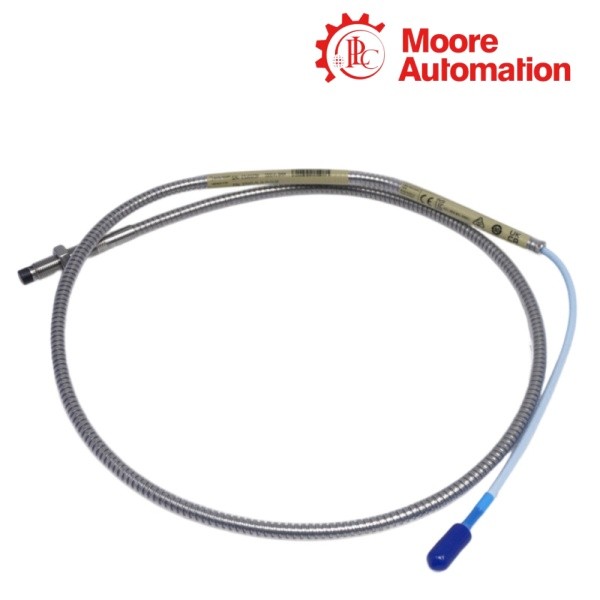

Name: Bently Nevada 330102-00-12-10-01-05 | 3300 XL 8 mm Proximity Probe
Brand: Bently Nevada
SKU: 2925419
Price: 1 USD
Availability: InStock

Product Description

Bently Nevada 330102-00-12-10-01-05 is a metric 3300 XL 8 mm proximity probe for non-contact shaft displacement and vibration measurement. Its complete order string identifies the supplied case, cable and approval execution within the matched probe, Proximitor sensor and monitor chain.

The probe tip faces a conductive target while the integral electrical path carries the probe response to the matching 3300 XL Proximitor sensor. Bently Nevada 330102-00-12-10-01-05 is therefore installed by controlling both the mechanical gap and the complete one-meter electrical configuration.

The 3300 XL 8 mm family uses a nominal 2.0 mm linear range and 7.87 V/mm scale factor under the stated target conditions. Actual installation still depends on the exact suffix, bracket geometry, target material and the monitor input used with the probe.

Official technical diagram for 330102-00-12-10-01-05

Product Specifications

Technical Item	Value
Model	330102-00-12-10-01-05
Brand	Bently Nevada
Product origin	USA
Signal family	Eddy-current proximity measurement
System family	3300 XL / 3300 system
Connector family	Miniature coaxial ClickLoc where applicable
Product type	3300 XL 8 mm metric proximity probe
Case / thread	M10 × 1 metric case; suffix-controlled geometry
Lead length	1 m system execution
Approval option	05 — complete suffix retained for ordering
Typical linear range	2.0 mm (80 mil) for 3300 XL 8 mm systems
Nominal scale factor	7.87 V/mm (200 mV/mil) for 3300 XL 8 mm systems
Typical frequency response	0 to 10 kHz, +0/−3 dB typical for 3300 XL 8 mm systems
Probe target	Conductive target; published values use AISI 4140 steel
Mounting requirement	Rigid bracket or housing with controlled probe gap
Operating temperature	Depends on the selected Bently Nevada family and exact suffix
Electrical path	Probe / cable / Proximitor sensor matched as a complete system
Probe configuration	8 mm probe with suffix-controlled length, thread, cable and approvals
Target material	Conductive target; published 3300 XL values use AISI 4140 steel
Environmental boundary	Use the selected probe, cable and Proximitor within their specified temperature limits

Product Functions

Bently Nevada 330102-00-12-10-01-05 converts target-gap changes into the electrical signal used by the 3300 XL Proximitor sensor.

Gap measurement

The eddy-current probe senses conductive-target distance without touching the rotating shaft.

Matched one-meter path

The specified lead length remains part of the calibrated probe and sensor combination.

Dynamic vibration output

Shaft motion is superimposed on the operating gap and appears at the conditioned monitor output.

Performance Characteristics

The operating behavior of Bently Nevada 330102-00-12-10-01-05 is tied to the 3300 XL 8 mm target, gap and electrical-length conditions.

2.0 mm linear span

The family response is specified over the 2.0 mm linear range, with the operating gap centered inside that region.

7.87 V/mm scale

The nominal scale factor relates target movement to the Proximitor output under the specified steel-target condition.

0 to 10 kHz response

The typical frequency response covers static position and dynamic vibration content in the matched 3300 XL system.

Common Questions

What does Bently Nevada 330102-00-12-10-01-05 measure?

Bently Nevada 330102-00-12-10-01-05 measures non-contact shaft displacement and vibration through the 3300 XL 8 mm proximity system.

Why must Bently Nevada 330102-00-12-10-01-05 use a matching Proximitor?

Bently Nevada 330102-00-12-10-01-05 is a probe element in a calibrated probe, cable and Proximitor chain, not a standalone voltage transmitter.

How is the gap for Bently Nevada 330102-00-12-10-01-05 adjusted?

Bently Nevada 330102-00-12-10-01-05 is positioned against the conductive target and adjusted inside the 2.0 mm linear range.

What target condition is used for Bently Nevada 330102-00-12-10-01-05 performance?

Bently Nevada 330102-00-12-10-01-05 family values use the stated conductive steel target conditions and can change with target geometry or material.

What does the 05 suffix mean on Bently Nevada 330102-00-12-10-01-05?

The 05 suffix is part of the complete approval or execution code and must remain attached to Bently Nevada 330102-00-12-10-01-05 during ordering.

What should be checked if Bently Nevada 330102-00-12-10-01-05 output is unstable?

Bently Nevada 330102-00-12-10-01-05: Check the probe gap, one-meter path, ClickLoc connection, target surface and matching Proximitor before changing monitor settings.
