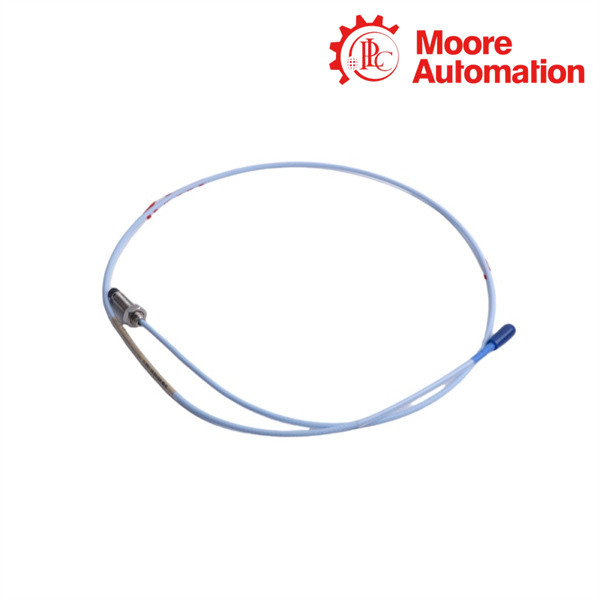

Bently Nevada 330101-00-12-90-02-00 3300 XL 8 mm Proximity Probes Item NO.: 2809339

Bently Nevada 330101-00-12-90-02-00 3300 XL 8 mm Proximity Probes

The Bently Nevada 330101-00-12-90-02-00 is an 8 mm proximity probe from the 3300 XL series, specifically designed for

vibration monitoring and shaft position measurement in rotating machinery. This probe is suitable for turbines, compressors,

pumps, and other critical rotating equipment, providing high-precision radial vibration and axial position measurements in

confined installation spaces or small shaft diameter environments. Employing high-precision linear measurement technology,

it works in conjunction with the 3300 XL Proximitor sensor to achieve reliable and stable vibration and position monitoring.
Product Configuration Information
Part Number-AA-BB-CC-DD-EE
A: Unthreaded Length Option --- 00 = 0.0 in.
B: Overall Case Length Option --- 12 = 1.2 in.
C: Total Length Option --- 90 =  9.0 meters (29.5 feet)
D: Connector and Cable-Type Option --- 02 =  Miniature coaxial ClickLoc
connector, standard cable
E: Agency Approval Option --- 00 = Not required

Manufacturer: Bently Nevada
Product Numbers: 330101-00-12-90-02-00
Product Type: 3300 XL 8 mm Proximity Probes
Place of 0rigin: USA
Power Requires: -17.5 Vdc to -26 Vdc
Maximum consumption:  -23 Vdc to -26
Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage
Output Resistance: 50 Ω
Nominal Probe DC Resistance: 7.45 ± 0.50 Ω
Probe Tip Material: Polyphenylene sulfide (PPS)
Probe Case Material : AISI 303 or 304 stainless steel (SST)
Probe Cable: 75Ω triaxial, fluoroethylene propylene (FEP) insulated
Armor (optional on both): Flexible AISI 302 or 304 SST with FEP outer jacket
Tensile Strength (Maximum Rated): 330 N (75 lbf) probe case to probe lead. 270 N (60 lbf) at

probe lead to extension cable connectors.
Connector Material: Gold-plated brass or gold plated beryllium copper
Probe Case Torque: 33.9 N•m (300 in•lbf) (Maximum Rated )
