Home>Bailey>Bailey NDSI02 Digital Slave Input Module

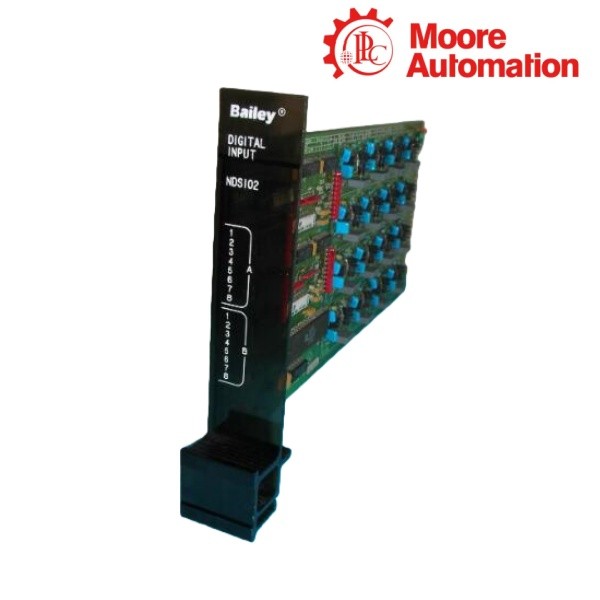

Bailey NDSI02 Digital Slave Input Module Item NO.: 2825145

Write a Review

US$ 1.00

Quantity: Stock ( 28 )

Condition: brand new
Delivery Time: 3-5 days
Warranty: One year

Note:Please send your Company name,Email address and Mobile No. to get formal quotation with best price.

Product Name	Bailey NDSI02 Digital Slave Input Module
Item NO.	2825145
Weight	1 kg = 2.2046 lb = 35.2740 oz
Category	Bailey
Brand	Bailey
Creation Time	2025-12-17

Features

Product Model:NDSI02

Product Parameters:Digital Slave Input Module

Brand:Bailey

Input Channels: 16 digital input channels (passive contact closures)

Input Voltage Options: 24 V DC, 125 V DC, 120 V AC RMS

Typical Input Current: ~4.5 mA @24 V DC, ~5.0 mA @125 V DC, ~7.0 mA @120 V AC

Turn-On Voltage (min): 21.4 V DC, 95 V DC, 85 V AC

Turn-Off Voltage (max): 12 V DC, 60 V DC, 42 V AC

Off Leakage Current (max): ≤10 µA (DC), ≤1.6 mA (AC)

Isolation: 300 V RMS input-to-logic and input-to-input

Logic Current Consumption: ~55 mA @+5 V DC (max ~79 mA)

Response Time: DC “Fast” ~1.5 ms, DC “Slow” ~18 ms

The ABB Bailey NDSI02, also designated as IMDSI02 in ABB/INFI 90 documentation, is a Digital Slave Input Module designed for use in ABB’s Bailey INFI 90 distributed control system (DCS). It serves as a discrete input interface that brings multiple separate digital signals from the process field into the Network 90/INFI 90 control architecture for processing and monitoring. The module accepts common field devices such as contact closures, switches, and solenoids, translating these discrete events into the control system for logical interpretation and system response.

Contact Us
Manager:		Leonia
E-mail:		sales@mvme.cn
Phone:		+8618030175807(whatsapp)

Believe Us, We Are The Best Choice

1. 24/7 rapid response.

2. Ready stock, fast delivery.

3. 100% quality guaranteed.

4. Exceptional service, competitive pricing.

5. Industry veterans, proven reliability.

Brand Application Areas

IndustryParts components are widely applied across diverse industrial sectors, including:

Manufacturing: Automation of assembly lines, robotics, and production processes

Energy & Power: Turbine control, generator monitoring, and grid automation

Oil & Gas: Process control, safety monitoring, and remote automation systems

Process Automation: Continuous monitoring and optimization of industrial processes
