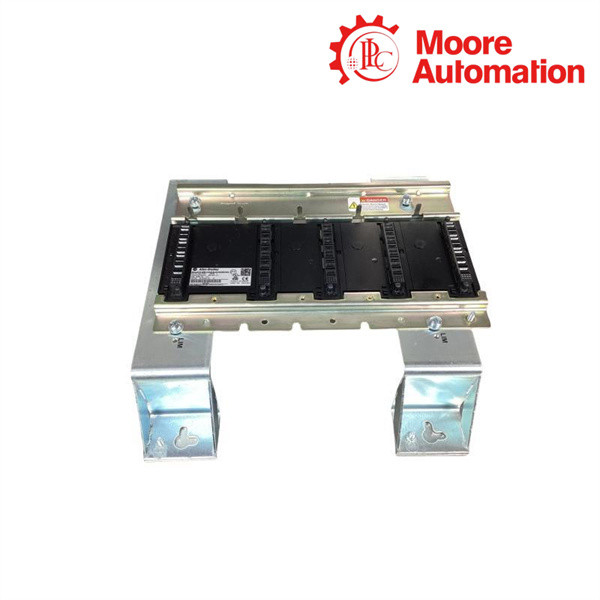

Allen Bradley 2094-PRS4 Kinetix 6000 Slim Power Rail Item NO.: 2808863

Manufacturer: Allen Bradley
Product Numbers: 2094-PRS4
Product Type: Kinetix 6000 Slim Power Rail
Place of origin: USA
Condition: 100% Original
Warranty: 1 Year
Category: Drives
Product Line: Kinetix 6000
Module Type Slim: Power Rail
Applications: 230 or 460 Volt Drive Systems
Module Capacity: 1 IAM, 3 Additional
Number of Axes: 4-Axes

The Allen-Bradley Bulletin 2094-PRS4 is part of a family of slim power rails and it has slots for converter and

inverter drive modules. It is compatible with either 230 Volts or 460 Volts drive systems. This part has four

inverter slots (axes) which a drive module can mount on. Out of these four slots, three at most are allocated for

integrated axis modules (IAM**)** and the remaining one can accommodate adjacent axis (AM), shunt, or

slot-filler inverter modules. The modules from the Kinetix 6000, Kinetix 6500, Kinetix 6000M and Kinetix 6200

family of drives can fit onto any 2094 power rail. The 2094-PRSx category of slim power rails fits well with any

class of 200V and 400V drive modules.Installing the 2094-PRS4 is done by mounting a 200 Volts class or 400

Volts class IAM module onto up to three out of the four inverter slots by screwing M6 metric bolts onto a cabinet.

Before mounting, an enclosure should have space for the power rail and the user should know the dimensions of

the mounting slot. By applying a torque of 45.0 pounds on an inch, the user can fasten a bolt that holds the

subpanel and the power rail. Installation is complete when the user attaches the bonded cabinet ground to the

braided grounding strap. The 2094-PRS4’s fourth slot is exclusively for a converter IAM module. Hence, shunt,

IPIM, and AM modules have an allocation for inverter slots only and cannot use the converter slot.
