Allen-Bradley 1791-32AO AC Block I/O Module: High-Precision, Multi-Channel Discrete Input for Industrial Automation

2026-02-11

Allen-Bradley 1791-32AO Module Arrives, Unlocking a New Experience in Discrete Input for Industrial Control Improving the Quality and Efficiency of Industrial Control Signal Acquisition: High-Quality Modules Become Key As industrial automation continues to accelerate, discrete input modules, as core components connecting field devices and PLCs, directly determine the signal acquisition efficiency and control accuracy of industrial control systems. Currently, various industries have a surge in demand for multi-channel, highly stable, and easily adaptable input modules, highlighting the shortcomings of traditional modules in terms of compatibility and anti-interference. To address this, Allen-Bradley has launched the 1791-32AO AC Block I/O discrete input module, leveraging mature technology and precise configuration to solve the pain points of industrial control signal acquisition and provide highly reliable solutions for various industrial scenarios.

Product Introduction: 1791-32AO, a Powerful Discrete Input Tool Adaptable to Multiple Scenarios

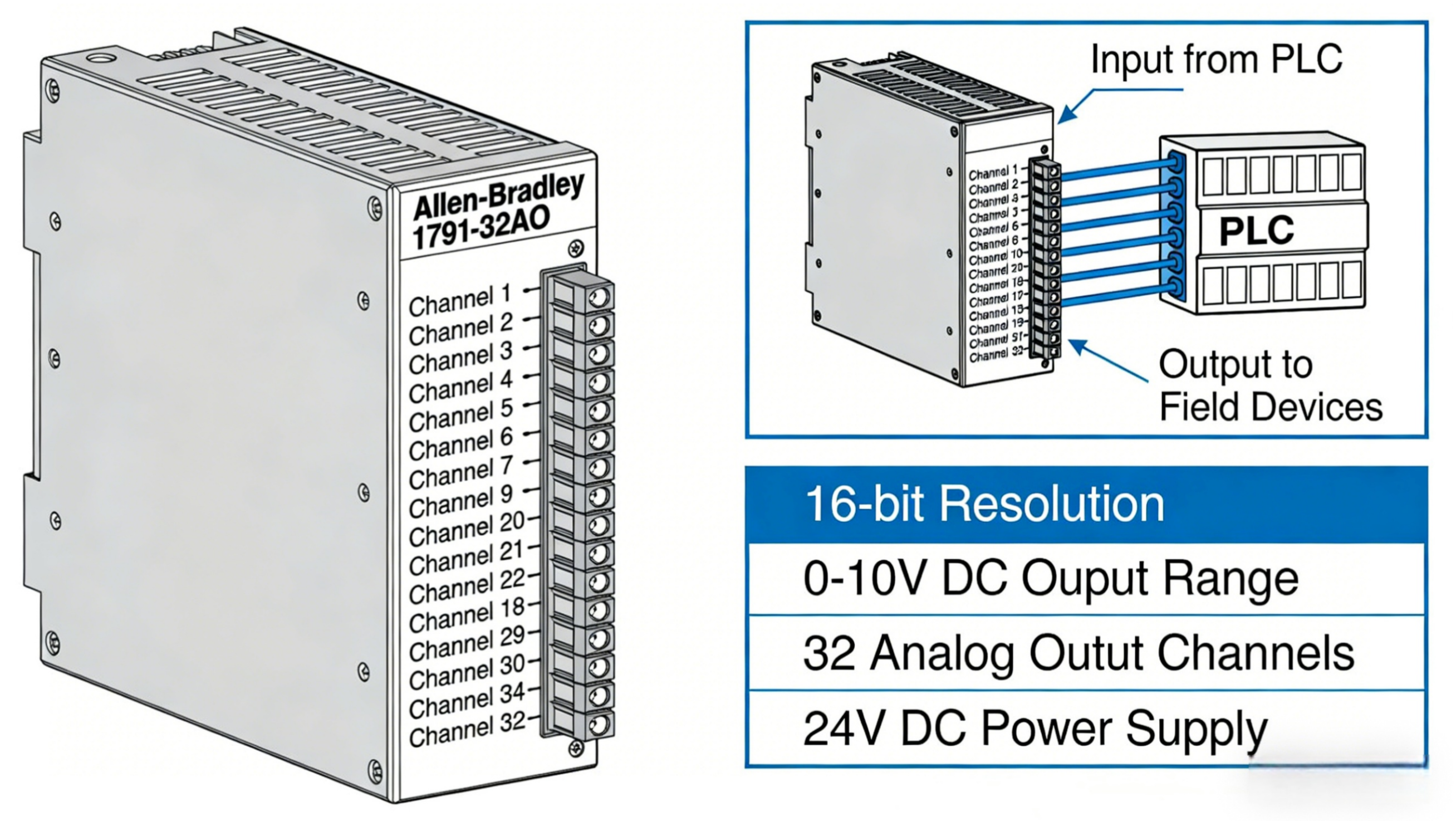

As the core product of the 1791 Block I/O module series, the Allen-Bradley 1791-32AO is a stand-alone discrete input module that integrates fixed I/O channels and a dedicated communication interface, allowing for quick integration into industrial control systems without complex accessories. This module features 32 discrete input channels, divided into 4 groups of 8 channels each. It adopts a 120VAC nominal input design, directly adapting to common industrial voltage environments. It is fully compatible with PLC-2, PLC-3, PLC-5 series, and PLC-5/250 programmable controllers, and also supports SLC 5/02 modular controllers, adapting to most mainstream industrial control system architectures.

Core Advantages: Precise Data Acquisition + Fast Response, Balancing Performance and Stability

The 1791-32AO module's core highlights are precise data acquisition and fast response, comprehensively ensuring signal transmission reliability. Its on-state voltage covers 79-132VAC (47-63Hz), and its off-state voltage does not exceed 35VAC. The on-state current is a minimum of 5mA at 79V, 60Hz and a maximum of 12.3mA at 132VAC, 60Hz. The off-state current is a minimum of 2.3mA (60Hz). Combined with a 15KΩ (60Hz) input impedance, it effectively avoids signal distortion. Excellent switching latency performance: only 1.0ms from shutdown to turn-on, and a maximum turn-on to shutdown latency of 26ms. Supports half-cycle power-down, perfectly adapting to the real-time control needs of industrial environments.

Technical Highlights: Multiple Protections + High-Efficiency Communication, Building a Solid Safety Barrier for Industrial Control

In terms of communication, this module is equipped with a single Remote I/O (RIO) communication port, natively supporting the RIO communication protocol, enabling high-speed data interaction with industrial controllers and ensuring real-time signal synchronization. For isolation protection, the module adopts a hierarchical isolation design. The isolation level between I/O groups and between I/O groups and logic circuits reaches 1250VAC, and the isolation level between the power supply and the RIO port is 500VAC, effectively resisting electromagnetic interference in industrial environments and eliminating signal crosstalk. Furthermore, the module's external power supply is compatible with 85-132VAC (47-63Hz) voltage and 150mA current, with a power consumption of only 13.62 Watts and a heat dissipation of 46.44 BTU/hr, demonstrating high efficiency, energy saving, and stable operation.

Installation and Maintenance: Convenient and Efficient, Significantly Reducing Labor Costs

The 1791-32AO module features a user-friendly design, balancing ease of installation with high efficiency in maintenance. Measuring 6.95 × 4.35 × 3.85 inches, it supports DIN rail or panel mounting, boasting a compact structure that doesn't occupy excessive space. Removable terminal blocks on both sides allow for quick and easy remote I/O, input, and power wiring, facilitating future maintenance. The module also includes status indicator lights for intuitive monitoring of communication and input status, enabling rapid troubleshooting. Two switch assemblies allow for flexible configuration of parameters such as the starting I/O group, rack number, and communication rate to adapt to different site requirements. Wiring is recommended using 14-gauge multi-strand wire with a maximum insulation thickness of 3/64 inches to ensure wiring safety.

Conclusion

The Allen-Bradley 1791-32AO AC Block I/O module, with its core advantages of multi-channel accurate acquisition, multiple isolation protections, broad compatibility, and convenient maintenance, has become the preferred product in the field of industrial control discrete input. This module is adaptable to operating temperatures of 0-60℃ and storage temperatures of -40-85℃, and supports non-condensing relative humidity of 5-95%, enabling it to handle harsh industrial environments with ease. It is widely used in various industrial control scenarios, including manufacturing and process control. It not only improves the accuracy and efficiency of signal acquisition in industrial control systems but also simplifies installation and maintenance processes, reduces labor costs, helps enterprises optimize their industrial control system architecture, and enhances automation levels, providing strong support for the high-quality development of industrial automation.
