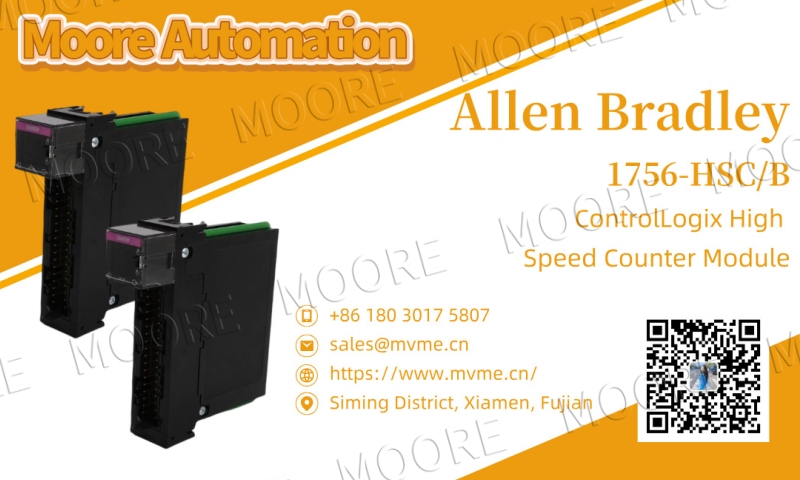

Allen Bradley 1756-HSC/B: High-Speed Counting Module, Enabling Precise Automation Control
2025-11-06

Introduction

The Allen-Bradley 1756-HSC/B is a counter module that is used to perform high-speed counting for industrial applications. This module has selectable modes such as the frequency mode, or the counter mode for processing input signals. The counter mode is set as the default mode which can update data every 2 milliseconds. Users can change the storage of the count values because the 1756-HSC/B module uses the user-configured presets to evaluate it against the count values. This gives the module a faster response time for activating outputs, compared to when an evaluation is done in the controller. Preinstalled configuration tags are available with the 1756- HSC/B module and these tags will decide whether the pulse that is counted will be an accumulated count, ranging from 1 to 16 million, or a positive or negative frequency, depending on the rotation’s direction.

The 1756-HSC/B module has 3 inputs per counter (A, B, and Z for gate reset) and 4 outputs (2 points per group) that are available for each module. The maximum input frequency is 1 megahertz in the counter mode (A Input), 500 kilohertz in the rate measurement mode (A Input), 250 kilohertz in the encoder mode (A/B Inputs, X1 or X4) and 70 Hertz with the filter enabled. Additionally, each counter channel can assign any number of output channels, with each output having as much as 2 turn-off preset values. Outputs on the 1756-HSC/B module can be turned on or off at the user’s discretion. The operating voltage range at 5 Volts operation is from 4.5 to 5.5 Volts DC and 10 to 31.2 Volts DC for 12/24 Volts operation, the total backplane power dissipation is 1.9 Watts, and the maximum power dissipation is 5.6 Watts at 60 degrees Celsius. The 1756-HSC/B module is commonly used together with the Allen-Bradley 845 incremental encoder, the PHOTOSWITCH series 10,000 photoelectric sensors, and the Allen-Bradley Bulletin 872 3-wire DC proximity sensor.

Technical specifications

Manufacturer: Allen Bradley

Category: PLCs

Product Line: ControlLogix

Part Number: 1756-HSC/B

Weight: 0.50 lbs (0.23 kg)

Inputs: 3 per Counter

Module Type: High Speed Counter Module

Outputs: 4-Point

Signal Frequencies: 1 MHz in counter modes (A input); 500 KHz in rate measurement mode (A input); 250 KHz in encoder mode (A/B inputs, X1 or X4); 50Hz with debounce filter enabled

Operation Modes: Counter, Rate Measurement, Encoder, Debounce Filter

Backplane Current (5Volts): 300 milliamps

Backplane Current (24 Volts): 3 milliamps

Power Dissipation (Max): 5.6 Watts at 60 Celsius

Count Range: 0-16, 214, 777

Removeable Terminal Blocks: 1756-TBCH, 1756-TBS6H

Location: Chassis (Any Slot)

Slot Width: 1

Application Areas

Discrete Manufacturing Industry: In automotive parts processing and electronic component assembly lines, it is used to monitor conveyor belt speed, workpiece positioning and counting, and robot motion feedback to ensure precise control of production line cycle time, improving product assembly accuracy and production efficiency.
Packaging Machinery Industry: Adapted to food and pharmaceutical packaging equipment, it enables packaging quantity statistics, film tension control, and sealing position calibration, ensuring packaging consistency and reducing material waste.
Logistics and Warehousing Automation: Applied to intelligent sorting lines and AGV robot navigation systems, it calculates AGV displacement and speed by collecting encoder pulse signals, achieving precise path planning and goods sorting and positioning.
Metallurgy and Metal Processing: In rolling mills and cold rolling production lines, it is used to monitor roll speed and steel strip length measurement, ensuring uniform rolling thickness and product dimensional accuracy, reducing scrap rates.
Energy and Power Industry: Adapted to wind turbine generator sets and hydroelectric generator sets, it collects spindle speed signals to achieve unit operation status monitoring and closed-loop speed control, ensuring power generation efficiency and equipment safety.

Core Advantages

High Precision and High Speed Combined: A maximum counting frequency of 1 MHz paired with a 32-bit counting range enables both high-frequency pulse signal capture and wide-range accurate counting. Compared to similar ordinary counter modules (maximum frequency 500 kHz), counting errors are reduced by more than 40% in high-speed production line scenarios.
Multi-Mode Flexible Adaptability: Supports multiple modes such as increment/decrement counting and A/B phase quadrature counting. It can be flexibly configured according to different sensor types (such as photoelectric encoders and proximity switches), meeting diverse counting needs without additional modules. Its adaptability is superior to single-mode counters.
Seamless and Efficient System Integration: As a native module of the ControlLogix system, it directly connects to the backplane bus without the need for an additional communication adapter. It achieves high-speed data interaction with the Logix control engine with a response latency of less than 1ms, and its integration efficiency far exceeds that of third-party compatible modules.
Excellent anti-interference performance: Utilizing a differential signal input design and industrial-grade EMC protection, it effectively resists electromagnetic interference generated by workshop motors and frequency converters. Signal acquisition accuracy reaches 99.99% in complex electromagnetic environments, and stability surpasses that of ordinary TTL signal counters.
Intelligent output and diagnostics: Equipped with two programmable high-speed outputs, it enables counting threshold trigger control; it also supports module status self-diagnosis and fault alarms, facilitating rapid location of wiring errors or signal anomalies and reducing maintenance troubleshooting time.

Installation and optimization

Installation recommendations:

Mechanical installation: Securely insert the module into an empty slot in the ControlLogix rack, ensuring good contact between the module and the rack backplane; the rack should be installed in a well-ventilated environment free from severe vibration, with at least 10cm of ventilation space around the module.
Electrical wiring: Use shielded twisted-pair cable to connect the counting input signal, with the shield grounded at one end; the distance between the input signal cable and the power cable should be ≥30cm to avoid signal interference; strictly follow the wiring diagram to distinguish the positive and negative terminals of the differential signal to prevent reverse connection and module damage.
System Configuration: Configure the modules using RSLogix 5000 or Studio 5000 software, selecting the counting mode, filtering parameters, and threshold output conditions according to actual needs. After configuration, perform signal testing to ensure accurate counting and normal output response.

Optimization Solutions:

Signal Filtering Optimization: For high-frequency interference scenarios, appropriately adjust the input signal filtering time in the software (5μs-10μs recommended) to balance signal response speed and anti-interference capability.
Counting Mode Matching: Select the optimal counting mode based on the sensor type—e.g., prioritize A/B phase orthogonal counting for rotary axis positioning, and pulse/direction counting for linear displacement measurement to improve measurement accuracy.
Redundancy and Backup: For critical counting scenarios, a dual-module redundancy configuration can be used, with software-based cross-validation of counting data to prevent data loss due to single-module failure.
Regular Maintenance: Check module wiring tightness and heat dissipation quarterly. Monitor module temperature, power status, and other parameters through software to promptly identify potential faults.

Conclusion

The Allen Bradley 1756-HSC/B ControlLogix high-speed counter module, with its core advantages of high precision, high speed, and high stability, is an ideal choice for industrial automation counting and pulse processing scenarios. It not only meets the complex counting needs of various industries such as automotive manufacturing, packaging, and energy, but also improves the control accuracy and operational efficiency of the overall automation system through seamless integration with ControlLogix systems. In today's pursuit of lean and intelligent production, this module provides strong technical support for enterprises to reduce counting errors, lower maintenance costs, and optimize production processes, making it an indispensable key component in the field of industrial automation.
