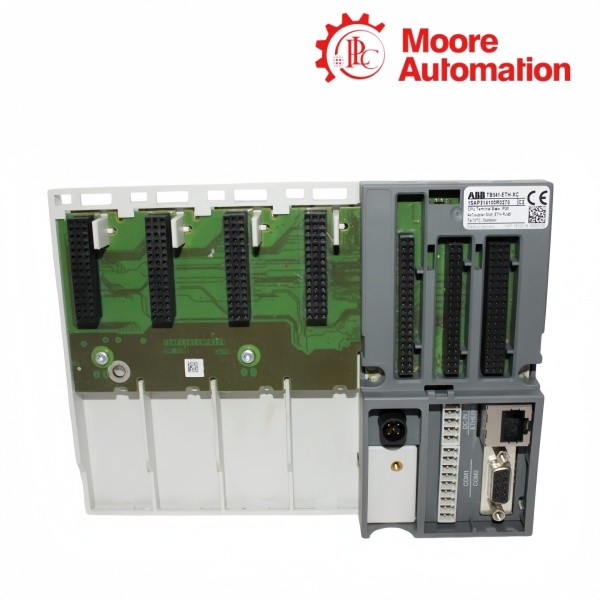

ABB TB541-ETH 1SAP114100R0270 AC500 CPU Terminal Base
1processor slot
4communication slots
1 × RJ45Ethernet service
01
Model Profile
ABB TB541-ETH 1SAP114100R0270 is an AC500 terminal base that provides the mechanical and electrical landing point for one compatible CPU and four communication modules. Its integrated RJ45 Ethernet connection brings the base into the network plan while the slot arrangement fixes where the processor and communication hardware are seated.
Compatibility for ABB TB541-ETH 1SAP114100R0270 depends on the CPU article and revision, not only the PM57x, PM58x or PM59x family name. ABB R0271 CPUs are used with R0270 bases in the documented combination, while PM591-2ETH follows a different base requirement and must not be placed on TB541 by assumption.
The installation record for ABB TB541-ETH 1SAP114100R0270 should include the CPU, communication modules, accessory set and cabinet wiring. That record lets future work distinguish a terminal-base fault, a seated-module problem and an Ethernet configuration issue without replacing parts by trial.
02
Technical Parameters
BrandABB
ModelTB541-ETH 1SAP114100R0270
Product nameAC500 CPU terminal base with Ethernet
CountrySwitzerland
Terminal-base familyAC500 TB5xx
Processor slots1
Communication-module slots4
Ethernet connection1 × RJ45
Compatible CPU rangeDocumented PM57x, PM58x and PM59x R0271 CPUs with R0270 base
Excluded CPU notePM591-2ETH uses TB523
Documented accessoriesTK501, TK502 and TA526
03
Installation Highlights
ABB TB541-ETH 1SAP114100R0270 establishes slot ownership and the physical CPU connection, so installation starts with a compatibility check and ends with a seated-module and network test. The installation record should preserve the CPU/base article pairing and the final slot order, making an incorrect assembly distinguishable from a project or network problem during service.
01
Confirm the CPU and base pair
Read the CPU article and base article before mounting. Check the documented R0271 CPU to R0270 base relationship and do not infer compatibility from the housing.
02
Mount and seat in sequence
Secure the base, verify rail and cabinet clearance, then seat the CPU and communication modules with power isolated. Inspect latches and connector engagement.
03
Test after wiring
Check supply, module recognition and the Ethernet link before application commissioning. Record the installed slot order against ABB TB541-ETH 1SAP114100R0270.
04
System Integration
ABB TB541-ETH 1SAP114100R0270 provides the physical station boundary between the processor, communication modules and cabinet Ethernet route. Integration succeeds when the installed slot order, project hardware tree and network record describe the same assembly. In the completed station, the base provides a defined physical boundary between the processor, communication modules and cabinet network; the project should preserve that same boundary in its hardware tree.
Mirror the physical slot order
Assign communication modules in the project in the same order used on ABB TB541-ETH 1SAP114100R0270. Matching cabinet labels, the hardware tree and the installed sequence makes a missing module easier to locate.
Define the network boundary
Record the RJ45 cable destination and the service carried through the station. Link status confirms a physical connection, while the project and network schedule explain what that connection is intended to do.
05
Product Help
Q01How can I confirm that a CPU fits ABB TB541-ETH 1SAP114100R0270?
Compare the complete CPU article and revision with the documented TB541 pairing. Do not decide from the PM57x/58x/59x family name alone when checking ABB TB541-ETH 1SAP114100R0270.
Q02Why is PM591-2ETH a special concern when selecting ABB TB541-ETH 1SAP114100R0270?
PM591-2ETH uses TB523 in the documented arrangement, so it should not be placed on ABB TB541-ETH 1SAP114100R0270 merely because other PM59x records use a TB541-family base.
Q03What causes a communication module not to appear after work on ABB TB541-ETH 1SAP114100R0270?
Check slot order, seating, connector condition, project hardware tree and supply state before replacing the module. The physical position on ABB TB541-ETH 1SAP114100R0270 must match the project.
Q04How should the RJ45 connection on ABB TB541-ETH 1SAP114100R0270 be documented?
Record the cable destination, network role and associated CPU interface or service. A link LED on ABB TB541-ETH 1SAP114100R0270 does not identify the intended network function.
Q05What should be inspected before energizing ABB TB541-ETH 1SAP114100R0270?
Verify mounting, CPU/base compatibility, seated latches, communication-slot order, supply polarity and cable strain. Keep power isolated until the inspection of ABB TB541-ETH 1SAP114100R0270 is complete.
Q06What should accompany an enquiry for ABB TB541-ETH 1SAP114100R0270?
Provide the complete base article, CPU article and revision, installed communication modules, accessory requirement, quantity and label photo so the request for ABB TB541-ETH 1SAP114100R0270 is unambiguous.
