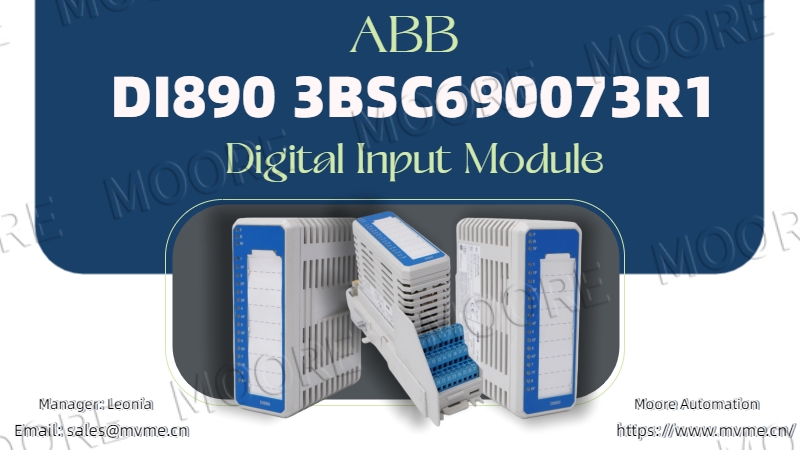

ABB Officially Releases DI890 (3BSC690073R1) 8-Channel Intrinsically Safe Digital Input Module

2026-03-13

Key Summary: The ABB DI890 (3BSC690073R1) 8-channel digital input module boasts three core advantages: full-channel intrinsic safety protection, electrical isolation, and NAMUR standard compatibility. It is perfectly suited for hazardous areas and industrial automation scenarios. Paired with the TU890/TU891 compact terminal unit, it enables efficient cabling, providing highly reliable signal acquisition solutions for industries such as petrochemicals, mining, and pharmaceuticals. This helps customers simplify system design, reduce integration costs, and simplify maintenance.

1. Core Product Positioning: A Reliable Choice for Signal Acquisition in Hazardous Areas

The DI890 (3BSC690073R1) is an intrinsically safe digital input module from ABB's S800 I/O series, specifically designed for hazardous areas. Its core positioning is as a bridge for signal communication between hazardous and safe areas. Its eight input channels all have built-in intrinsically safe protection components, eliminating the need for additional external safety barriers. This allows direct connection to field devices in hazardous areas (such as Ex Zone 2), while meeting G3 industrial environment corrosion resistance requirements and ensuring stable operation in high-temperature, high-humidity, and high-dust environments.

This module can flexibly connect to various signal sources, including intrinsically safe proximity switches and voltage-free contacts. It supports NAMUR standard sensor input, automatically detects line faults, and achieves status monitoring without additional external components, significantly reducing field wiring complexity and system failure risks. Whether for system integration in new projects or upgrades to existing hazardous area systems, the DI890 can quickly adapt, improving signal acquisition efficiency and system safety.

2. Core Technology Highlights: Triple Protection Ensures Stable Operation

2.1 Full-Channel Intrinsically Safe Protection

Each channel is independently equipped with intrinsically safe protection components, which limit the energy output of field circuits, preventing electrical sparks or high temperatures, and meeting explosion-proof requirements for hazardous areas. No external safety barriers are required; it can be directly connected to intrinsically safe proximity sensors, voltage-free contacts, and other field devices, simplifying system design and reducing equipment procurement and installation costs, making it particularly suitable for space-constrained control cabinet scenarios.

2.2 Comprehensive Electrical Isolation Design

Each of the 8 channels is independently electrically isolated from each other, from the ModuleBus bus, and from the power supply, with an isolation voltage of up to 2500V AC, effectively blocking signal interference and fault propagation between different channels. A fault in one channel will not affect the normal operation of other channels. Even if a channel experiences a short circuit or overvoltage, it ensures the continuous and stable operation of the entire module, guaranteeing uninterrupted production.

2.3 Intelligent Monitoring and Fault Diagnosis

The module is equipped with 3 sets of status indicator lights: a red Fault light, a green Run light, and a yellow Warning light, providing real-time feedback on the module's operating status. Each channel has a built-in yellow signal indicator light that automatically illuminates when the input signal is high, clearly displaying the field signal status. It also supports automatic line fault detection, enabling direct fault diagnosis for NAMUR sensors; for sensors without voltage contacts, only external series and parallel resistors are needed to complete on-site circuit status monitoring and quickly locate fault points.

2.4 Comprehensive Electrical Protection Mechanism

Built-in overvoltage protection (supports 30V input), short-circuit protection (ground short-circuit protection), and over-temperature protection provide triple protection, effectively mitigating risks such as on-site voltage fluctuations, wiring errors, and equipment malfunctions. Input delay can be flexibly configured within the range of 0.1ms to 32ms to adapt to the signal response requirements of different scenarios, with a fastest response time of 0.1ms, meeting the needs of high-speed signal acquisition scenarios. The input current adaptation range per channel is 2mA to 8mA; the low-current design reduces the load pressure on on-site equipment and extends the service life of sensors and other devices.

2.5 Efficient Cabling and Installation Adaptability

Perfectly compatible with the TU890 and TU891 compact terminal units. The TU890 is suitable for hazardous areas (Ex scenario), while the TU891 is suitable for non-hazardous areas. It supports direct two-wire connection to field devices, eliminating the need for additional terminal blocks and significantly reducing wiring workload and error rates. The module features a compact design, measuring 45mm × 119mm × 102mm and weighing only 0.3kg. It is compatible with standard DIN rail mounting and supports hot-swapping, allowing for module replacement without system downtime, minimizing maintenance downtime.

3. Core Functions and Advantages: Simplified Integration, Improved Efficiency

4. Technical Specifications: Precisely Matching Industrial Scenarios

5. Typical Application Scenarios: Covering the needs of hazardous areas in multiple fields

5.1 Petrochemical Industry

In hazardous areas of refineries and chemical plants (such as tank areas and equipment areas), the DI890 can be directly connected to intrinsically safe level sensors, pressure switches, and valve position feedback signals without the need for additional safety barriers, meeting explosion-proof requirements. The full-area electrical isolation design effectively resists on-site electromagnetic interference, ensuring accurate signal acquisition. Combined with the TU890 terminal unit, it enables rapid wiring, reducing the system integration difficulty in complex chemical environments.

5.2 Mining Industry: Underground mines are characterized by complex environments and high dust concentrations. The DI890's G3 corrosion resistance certification and IP20 protection rating make it suitable for harsh environments. It can connect to proximity switches, limit switches, and other signals from underground equipment. Its intrinsically safe design prevents electrical sparks, improving underground operation safety. Hot-swappable functionality supports rapid maintenance of underground systems, reducing downtime and ensuring continuous mine production.

5.3 Pharmaceutical and Fine Chemical Industry: Pharmaceutical workshops and fine chemical plants have extremely high requirements for environmental cleanliness and equipment safety. The DI890's intrinsically safe protection and low-interference design accurately acquire signals from equipment such as reactors and centrifuges, while avoiding electromagnetic pollution to the on-site environment. Combined with the TU891 terminal unit, it enables efficient wiring, meets cleanroom installation specifications, and reduces system maintenance costs.

5.4 General Industrial Automation Scenarios

In hazardous area signal acquisition scenarios in industries such as automotive manufacturing, metallurgy, and energy, the DI890 can flexibly adapt to various signal sources, and its fully isolated design ensures stable operation of multi-channel systems. Its compact design and hot-swappable functionality adapt to various control cabinet installation requirements, improving system integration efficiency and ease of maintenance.

6. Summary of Value and Application Significance

The ABB DI890 (3BSC690073R1) 8-channel intrinsically safe digital input module solves the safety and stability challenges of signal acquisition in hazardous areas with its three core technologies: full-channel intrinsic safety protection, full-domain electrical isolation, and intelligent fault diagnosis. It eliminates the need for external safety barriers, simplifying system design and reducing procurement and installation costs; its fully isolated design enhances system anti-interference capabilities and fault tolerance, adapting to complex industrial environments; and its intelligent monitoring and efficient wiring functions significantly reduce maintenance difficulty and downtime.

For companies in the petrochemical, mining, and pharmaceutical industries, the DI890 is not only a signal acquisition device but also a core component for ensuring production safety, improving system efficiency, and reducing operating costs. Its precise technical parameters and rich adaptability allow for rapid integration into existing systems or new projects, helping customers achieve efficient, safe, and intelligent signal acquisition in hazardous areas, providing solid support for the stable operation of industrial automation systems.
