Establish network identity
Assign the approved IP parameters and document the Modbus client, unit handling and connection supervision before process data is enabled.
ABB · AC500 Modbus TCP I/O

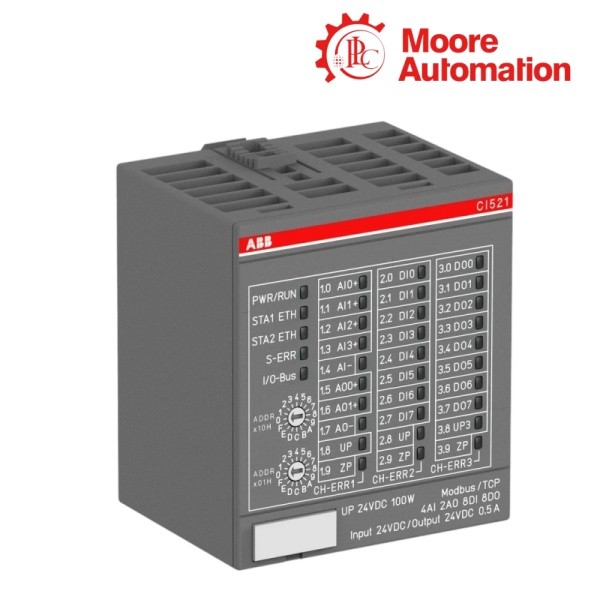

ABB CI521-MODTCP 1SAP222100R0001 Modbus TCP Mixed-I/O Interface
4 AI + 2 AOanalog channels
8 DI + 8 DOdigital channels
200 kHzfast counter
01
Hardware Overview
ABB CI521-MODTCP 1SAP222100R0001 is a Modbus TCP communication interface with local mixed I/O: four analog inputs, two analog outputs, eight digital inputs and eight digital outputs. It connects those field signals to a Modbus TCP controller without requiring a separate communication coupler and four independent I/O records.
The analog side of ABB CI521-MODTCP 1SAP222100R0001 supports configured measurement and command ranges, while the digital side includes fast-counter operation up to 200 kHz. Channel mode, scaling, network mapping and terminal use must be designed together because a correct Modbus register does not by itself prove a correct field configuration.
For commissioning, ABB CI521-MODTCP 1SAP222100R0001 should first be recognized on the network, then tested by signal class. Analog references, output loads, digital supply and counter wiring should be verified separately before the combined station is released to the application.
02
Engineering Data
BrandABB
ModelCI521-MODTCP 1SAP222100R0001
Product nameModbus TCP mixed-I/O communication interface
CountrySwitzerland
ProtocolModbus TCP
Analog inputs4
Analog outputs2
Digital inputs8
Digital outputs8
Analog-output resolution12 bits plus sign
Analog-output settling time5 ms
Current-output load0 to 500 Ω
Voltage-output load±10 mA maximum
Fast-counter frequencyUp to 200 kHz
Module dimensions28 × 135 × approximately 84.5 mm
03
System Integration
ABB CI521-MODTCP 1SAP222100R0001 joins Modbus TCP registers to local analog and digital terminals. Integration succeeds only when network mapping, signal type and field wiring point to the same channel. A complete integration record connects terminal numbering, channel direction, Modbus register ownership and the PLC variable name, preventing a healthy network exchange from masking a field-mapping error.
01
Create the channel register map
Document every input, output, data type and update direction before PLC logic is written. Keep the map version with ABB CI521-MODTCP 1SAP222100R0001.
02
Separate signal references
Plan analog reference and shielding independently from digital load returns. Shared cabinet power does not justify an uncontrolled common path.
03
Verify end-to-end ownership
For each important point, test field signal, module channel, Modbus register and PLC variable in sequence. This confirms the complete path through ABB CI521-MODTCP 1SAP222100R0001.
04
Configuration and Programming
Configuration of ABB CI521-MODTCP 1SAP222100R0001 includes IP and Modbus settings, channel ranges, digital modes and fast-counter behavior. These settings should be frozen only after field tests confirm the intended signal path. Configuration changes should be verified channel by channel and stored with the accepted register map so later edits can be compared with a known operating baseline.
Configure by signal class
Set analog ranges and scaling first, digital directions second, and counter mode last. This keeps commissioning changes on ABB CI521-MODTCP 1SAP222100R0001 easy to trace.
Test exceptional states
Verify out-of-range analog signals, missing process voltage, communication interruption and counter reset behavior so the application responds predictably around ABB CI521-MODTCP 1SAP222100R0001.
05
Buyer Questions
Q01Why can a Modbus register update while the field value on ABB CI521-MODTCP 1SAP222100R0001 is wrong?
The register path can be healthy even when analog range, scaling, reference or terminal wiring is incorrect. Compare the raw channel value and field signal on ABB CI521-MODTCP 1SAP222100R0001.
Q02How should the 200 kHz counter function on ABB CI521-MODTCP 1SAP222100R0001 be commissioned?
Use the specified input and wiring method, verify pulse amplitude and frequency, then compare a known pulse count with the mapped value before enabling application logic on ABB CI521-MODTCP 1SAP222100R0001.
Q03What should be checked when an analog output on ABB CI521-MODTCP 1SAP222100R0001 does not reach its commanded value?
Confirm range, data scaling, register format, load resistance, wiring and reference. Measure the terminal signal with the final element controlled before replacing ABB CI521-MODTCP 1SAP222100R0001.
Q04How can duplicate IP or Modbus mapping errors around ABB CI521-MODTCP 1SAP222100R0001 be prevented?
Maintain an approved address and register schedule, label the installed interface, and compare the running configuration with the PLC project before connection of ABB CI521-MODTCP 1SAP222100R0001.
Q05What is the best test order for ABB CI521-MODTCP 1SAP222100R0001?
Confirm power and network identity, then test digital inputs, digital outputs, analog inputs, analog outputs and counter functions separately. Store the accepted register map with ABB CI521-MODTCP 1SAP222100R0001.
Q06What details should accompany an enquiry for ABB CI521-MODTCP 1SAP222100R0001?
Send the complete article, current network settings, channel list, signal ranges, terminal context, required quantity and observed symptom so the enquiry for ABB CI521-MODTCP 1SAP222100R0001 remains specific.
