ABB AF400-30-11 3-Pole Contactor
Three-pole contactor with three normally open main contacts and one normally open plus one normally closed auxiliary contact.
Product Overview
High-current three-pole switching with electronic coil technology
ABB AF400-30-11 is the base designation for a three-pole AF contactor. Common contact data include three normally open main contacts and integrated 1 NO + 1 NC auxiliary contacts.
Official coil variants use different suffixes and control-voltage ranges. Because the requested model omits that suffix, this page does not assign a coil voltage; procurement must verify the complete order code.

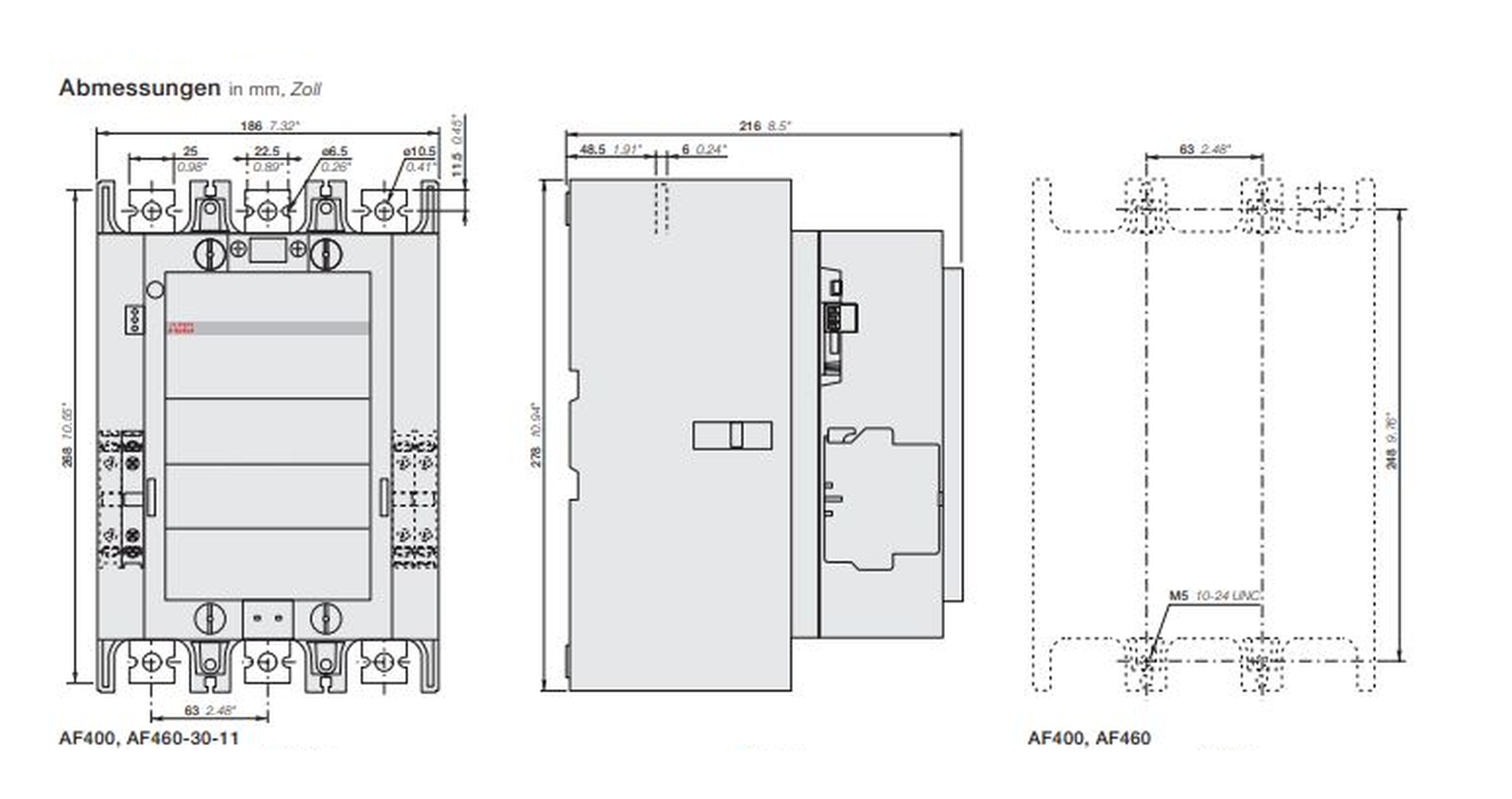

Official ABB AF400 and AF460 contactor dimensional drawing.
Product Specifications
Official identification and technical data
| Brand | ABB |
|---|---|
| Base model | AF400-30-11 |
| Main poles | 3 |
| Main contacts | 3 NO |
| Auxiliary contacts | 1 NO + 1 NC |
| Rated operational voltage | Up to 1000 V |
| AC-3 operational current | 400 A |
| AC-1 operational current | 600 A |
| Motor rating at 400 V, AC-3 | 200 kW |
| Coil voltage | Defined by the complete ABB suffix; not specified in the base code |
Operating Characteristics
Main-circuit and auxiliary-contact arrangement
Three main poles
The -30- portion identifies three normally open main contacts.
Integrated auxiliary contacts
The -11 designation provides one NO and one NC auxiliary contact.
AC-3 switching
The common AF400 rating is 400 A in AC-3 duty.
AC-1 switching
The common AF400 rating is 600 A in AC-1 duty.
Selection Highlights
Complete coil suffix required before ordering
Control-voltage variants
ABB lists multiple AF400-30-11 coil variants with distinct control-voltage ranges.
Match the full order code
Verify the suffix and nameplate so the contactor coil matches the control supply.
FAQ
ABB AF400-30-11 technical questions
How many main poles does AF400-30-11 have?
It has three normally open main poles.
Which auxiliary contacts are integrated?
One normally open and one normally closed auxiliary contact are included.
What is the common AC-3 current rating?
ABB lists 400 A for the AF400 contactor in AC-3 duty.
What motor rating is listed at 400 V?
The common AF400 data lists 200 kW at 400 V in AC-3 duty.
Which coil voltage does the base AF400-30-11 code use?
The base code alone does not define it. ABB uses a suffix to identify the coil variant, so the complete order code must be checked.
